VZ17, Schneider Electric Switch Disconnector Shaft 300mm, VZ Series for Use with Switch Disconnectors

Accessories for the Open and Enclosed Switch Disconnectors

Note

Suitable for the 'Vario' range of switch disconnectors

Schneider Electric Switch Disconnector Shaft, Door Interlocking Type, 300 to 330mm Back/Door Distance - TeSys VARIO Series - VZ17

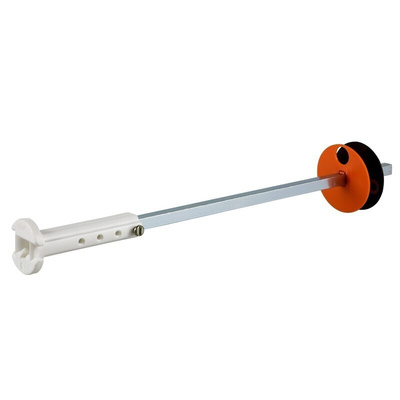

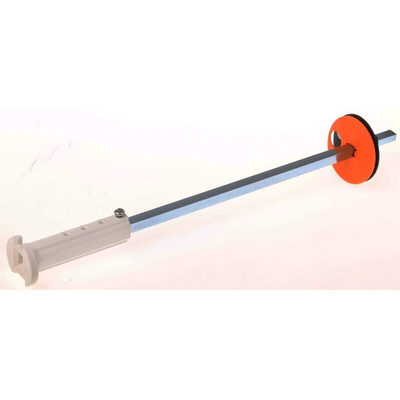

If you need to shut down part of an electrical circuit from a distance, this switch disconnector shaft from Schneider Electric does the job. It comprises a metal rod attached to the control mechanism so you can turn the power on or off manually when the switch is inside an enclosure. As it works with any disconnector from the V02 and V2 ranges, it's a versatile piece of kit. This unit allows for a possible distance of 300 to 330mm between the door and the back of the enclosure for flexible mounting.

Features & Benefits

• Light 75g weight doesn't strain your setup
• Free from mercury and toxic heavy metals, so it's an environmentally friendly option
• Inbuilt plastic housing accommodates the switch with ease

Applications

• Energy industry
• HVAC systems
• Construction equipment
• Electrical engineering

How does a switch disconnector work?

A switch disconnector breaks the electrical connection to a specific part of the circuit, isolating it from the power supply for safe access during maintenance.

Can I lock my switch disconnector with this shaft?

Yes, you can, as this shaft has an integrated door interlocking function.
