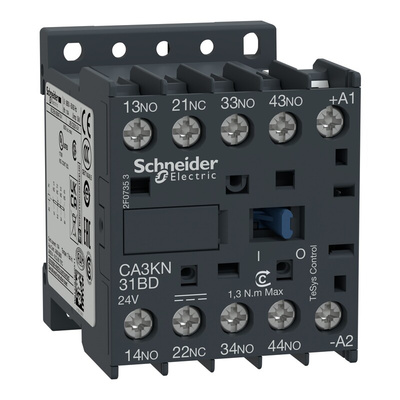

CA3KN31BD, Schneider Electric CA3KN Series Contactor, 24 V dc Coil, 10 A, 3 W, 3NO + 1NC, 690 V ac, Контактор

Schneider Electric | TeSys K Series | Control Relays

Creating seamless integration in all automation applications, compactness ratio and high performance, the TeSys K series is a range of reversing or non-reversing contactors. All 4 pole relays have 10A thermally rated contacts which are suitable for AC or DC control voltages. In addition the series also features low consumption coil versions with built in suppression which are suitable to be used with programmable controllers.

Features and Benefits:

• Common options available for all 6, 9, 12 A ratings
• AC and DC Control circuits available
• Low-consumption DC and silent
• Variety of auxiliary contacts, and timer modules
• Clamp terminals as standard with spring terminal, printed circuit board connection and fast-on connector types available
• Consistent connection tightness
• Power consumption for Vac types 4.5 VA
• Power consumption for Vdc types 2.4 W
• Resistance to vibration & temperature cycling
• Din or screw fixing

Protection ratings & Safety features:

• BS 5424, IEC 60947, NF C 63-140 and VDE 0660 standards
• CSA and UL certification
• IP2x protection
• TC conforming to IEC 60068

Applications - Ideal for Zones sensitive to noise, disturbed mains supplies, industry, building and infrastructure. Other applications include:
• Switching contactor or relay coils
• Powering control and signalling equipment
• Simple control systems

Note

Relays are positively guided.

Schneider Electric Control Relay, For AC-15/DC-13 Electromagnetic Loads, 225g Weight - TeSys K CA3KN Series - CA3KN31BD

Keep a close eye on your electric motor with this control relay from Schneider Electric. It has a utilisation category of AC-15/DC-13 and stops a motor from drawing more current than it can handle to reduce the risk of overheating and malfunctioning. You can put this device to the test in harsh industrial locations, as it resists vibration and shock. A maximum operating rate of 10,000 cycles per hour makes it durable, so you can count on its reliability in demanding systems. This unit is built to optimise control cabinet packing space with compact dimensions of 58 (H) x 45 (W) x 57mm (D).

Features & Benefits

• Flame-retardant to minimise the risk of a fire spreading
• Insulated for protection against electric shock
• Optional rail or plate mounting to best suit your setup
• IP2X-rated housing reduces the chance of your fingers making contact with live parts

Applications

• Industrial manufacturing equipment
• HVAC systems
• Power utilities
• Mining and minerals processing

Is this an environmentally friendly product?

Yes, the control relay is end-of-life optimised to maximise material recovery. This helps to cut down on the amount of waste sent to landfill.
