931855001 N6R AF, Hirschmann, NR 7 Pole M26 Din Socket, DIN 43651, 10A, 250 V ac/dc IP65, Female, Panel Mount, Разъем

Panel Plug & Socket Shells

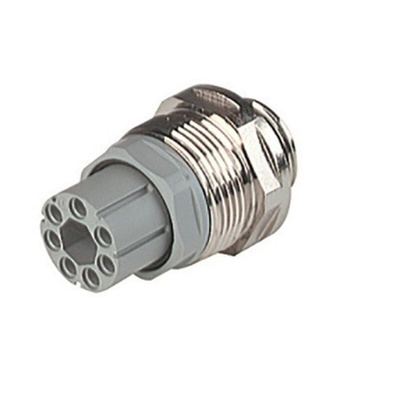

Belden Hirschmann DIN Socket, Straight Orientation, 29.5mm Diameter - NR Series - 931855001 N6R AF

Looking to make a solid connection between components in your industrial setup? Choose this DIN socket from Belden's Hirschmann range for the task. It's a panel-mounted socket with a screw-in connection, so installation's simple and takes just two ticks. The silver-plated contacts don't react to chemicals, so you can be sure corrosion won't eat into performance over time. To permanently secure your wiring, use a crimp termination method that eliminates any possibility of loose connections.

Features & Benefits

• IP65 rating means it's dust-tight and withstands low-pressure water jets from all directions
• Performs reliably in temperatures between -40°C and +90°C
• Versatile option, as it accommodates cable sizes between 0.5 and 1.5mm²

Applications

• Display and audio devices
• Information technology
• Industrial automation

What tools will I need for installation?

Choose a hand crimping tool from RS PRO (such as 468-686) or a ratchet crimp tool (450-4411) to install this DIN socket.

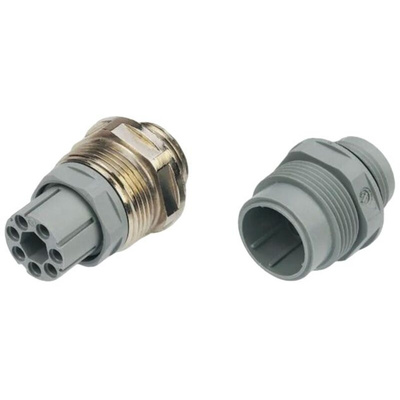

Hirschmann NR Plastic

Robust 6 and 11 pole connectors, made from glass-fibre reinforced plastic, which conform to DIN 43651. Suitable for a variety of applications, including:

Mains and control lead connections to limit valve sensors, limit switches and current monitors
Small transmission systems, pump drives and systems subject to vibrations
Machine tools and automation technology

Note

The earthing contact in each mating half protects sensitive electronic components against static voltages during the plugging operation.
Contacts must be ordered separately. Plug shells accept pin contacts, socket shells accept socket contacts.
The in-line coupler mates with the 6+E cable mount socket, stock no. 202-1936.
The ratchet and plier style support crimp tooling (stock no. 450-4411) (note: is also suitable for QM single and two piece contacts (see stock no. 466-804 for contact details).
The plier tool (stock no. 468-686) can also be used to crimp contacts for the Circular Sealed Industrial IP67 connector range and the Sealed Industrial IP68 connector range (stock no. 489-526). Instructions supplied with tools. These tools support this range, but are not manufactured by Hirschmann.

NR Series Circular Connectors 6 Pole Socket Screw-In Case Data Sheet

Datasheet - 931855001 N6R AF
