932631106 N11R EM, Hirschmann, NR 12 Pole Din Plug, DIN 43651, 5A, 60 V ac IP65, Male, Cable Mount, Разъем

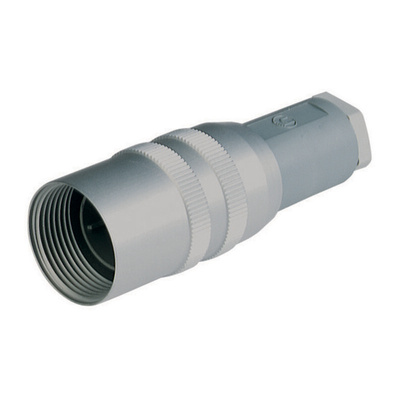

Belden Hirschmann DIN Plug, Straight Body Orientation, 28mm Diameter - NR Series - 932631106 N11R EM

Grab this DIN plug from Belden's Hirschmann range to make reliable joins between devices in your industrial system. Its 12 poles establish a highly-conductive route to get your signal from A to B in no time. The unit's plastic housing is reinforced with glass fibre, so shrugs off bumps, scuffs and contaminants without missing a beat. Use the manual crimp termination method to create a permanent attachment that's gas-tight and stops contaminants from sneaking through.

Features & Benefits

• Silver-plated contacts resist corrosion, ensuring efficient signal transfer
• Voltage rating of 60V AC/DC suits low-power applications
• IP65 rating means it's completely dust-tight and withstands temporary immersion in 1m of water

Applications

• Remote sensing devices
• Pump drives and transmissions
• Industrial automation

Can I use this device in challenging conditions?

Yes. The plug gets on with its job reliably in a temperature range between -40°C and +90°C, so it's not fazed by demanding environments.

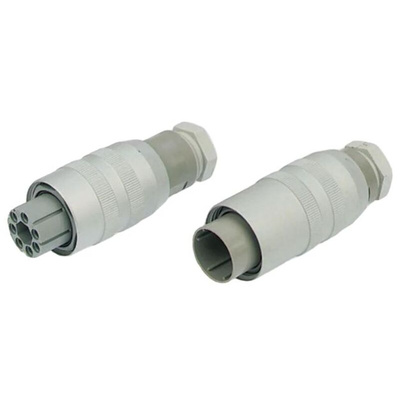

Hirschmann NR Plastic

Robust 6 and 11 pole connectors, made from glass-fibre reinforced plastic, which conform to DIN 43651. Suitable for a variety of applications, including:

Mains and control lead connections to limit valve sensors, limit switches and current monitors
Small transmission systems, pump drives and systems subject to vibrations
Machine tools and automation technology

Note

The earthing contact in each mating half protects sensitive electronic components against static voltages during the plugging operation.
Contacts must be ordered separately. Plug shells accept pin contacts, socket shells accept socket contacts.
The in-line coupler mates with the 6+E cable mount socket, stock no. 202-1936.
The ratchet and plier style support crimp tooling (stock no. 450-4411) (note: is also suitable for QM single and two piece contacts (see stock no. 466-804 for contact details).
The plier tool (stock no. 468-686) can also be used to crimp contacts for the Circular Sealed Industrial IP67 connector range and the Sealed Industrial IP68 connector range (stock no. 489-526). Instructions supplied with tools. These tools support this range, but are not manufactured by Hirschmann.
