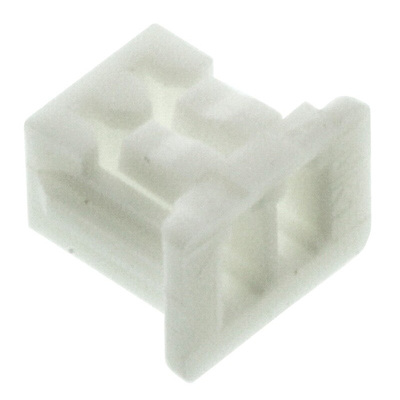

51021-0200, Molex, PicoBlade Female Connector Housing, 1.25mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex PicoBlade Series 51021 Connector Housings

The PicoBlade 51021 Series can be used across a number of applications such as automotive, industrial, consumer, computing and medical. The PicoBlade connector system is offered in wire to board and wire to wire options and is ideal for saving PCB space.

Features and Benefits

• Single row, wire to wire and wire to board housings
• Straight friction locks provide secure mating
• Compact design
• 1.25 mm pitch
• 2 to 15 circuits
• The crimp terminals are polarised to prevent incorrect insertion

Standards

UL (E29179); CSA (LR19980)

Molex PicoBlade Female Connector Housing, 2 Way, 1.25mm Pitch - 51021 Series - 51021-0200

Looking for a compact receptacle to link your crimp terminals to printed circuit boards (PCBs)? Choose this female connector housing from Molex. It has a compact pitch of 1.25mm and two ports, making it a space-efficient component for wire-to-wire and wire-to-board applications. Thanks to its maximum current rating of 0.8 to 1A per contact, this unit is ideal for medium-scale applications in both commercial and industrial environments.

• Polyester (PET) material for superior electrical insulation and impact resistance
• Compact dimensions of 4.25 (length) x 3.2 (width) x 3.95mm (depth) for use in busy setups
• Straight body orientation for convenient mounting on a PCB
• Broad operating temperature range of -40°C to +85°C for use in demanding conditions
• Polarised terminal points to ensure accurate connections and prevent damage to your ports

Applications

• Automotive industry
• Agricultural equipment
• Household appliances
• Medical devices

How do I maintain this component?

The housing doesn't need much maintenance aside from routine cleaning. To ensure optimal performance, you can use a PCB cleaning brush to occasionally remove dust and debris from the ports.

Approvals

UL (E29179); CSA (LR19980)

1.25mm Wire to Board - Molex PicoBlade™

Datasheet

Line Drawing
