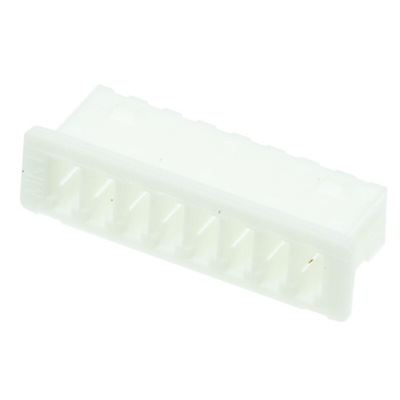

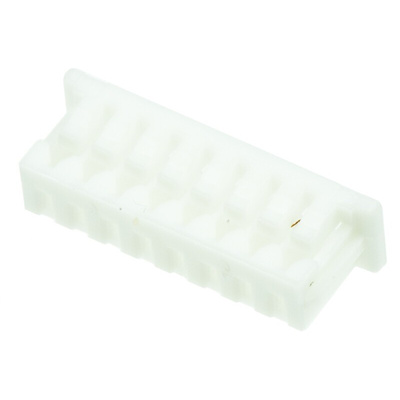

51021-0800, Molex, PicoBlade Female Connector Housing, 1.25mm Pitch, 8 Way, 1 Row, Корпус разъема

Molex PicoBlade Series 51021 Connector Housings

The PicoBlade 51021 Series can be used across a number of applications such as automotive, industrial, consumer, computing and medical. The PicoBlade connector system is offered in wire to board and wire to wire options and is ideal for saving PCB space.

Features and Benefits

• Single row, wire to wire and wire to board housings
• Straight friction locks provide secure mating
• Compact design
• 1.25 mm pitch
• 2 to 15 circuits
• The crimp terminals are polarised to prevent incorrect insertion

Standards

UL (E29179); CSA (LR19980)

Molex Connector Housing, 8 Way, 1 Row - PicoBlade Series - 51021-0800

This crimp receptacle from Molex provides robust protection when making wire-to-wire and wire-to-board connections. It houses eight contacts in a single row for simple organisation of wires. Thanks to its compact dimensions of 11.75 (length) x 3.2 (width) x 3.95mm (depth) and its pitch of 1.25mm, it's ideal for PCBs (printed circuit boards) where space is limited. It also features straight friction locks for strong, secure mating and polarised crimp terminals to prevent mismating and damage to the connection. Use this housing to help protect your connections from dust, moisture and other environmental contaminants for more reliable performance.

Features & Benefits

• Straight body orientation for ease of insertion
• Polybutylene terephthalate (PBT) construction for durability and heat resistance
• Wide operating temperature range of -40°C to +85°C for use in demanding applications

Applications

• Automotive industry
• Consumer electronics
• Medical equipment manufacturing
• Computers and data communications

What connectors can this unit be used with?

This female crimp housing will accommodate male contacts that are part of the Molex PicoBlade series, making it simple to create a variety of space-saving wire-to-wire and wire-to-board connections.

Approvals

UL (E29179); CSA (LR19980)
