51021-1000, Molex, PicoBlade Female Connector Housing, 1.25mm Pitch, 10 Way, 1 Row, Корпус разъема

Molex PicoBlade Series 51021 Connector Housings

The PicoBlade 51021 Series can be used across a number of applications such as automotive, industrial, consumer, computing and medical. The PicoBlade connector system is offered in wire to board and wire to wire options and is ideal for saving PCB space.

Features and Benefits

• Single row, wire to wire and wire to board housings
• Straight friction locks provide secure mating
• Compact design
• 1.25 mm pitch
• 2 to 15 circuits
• The crimp terminals are polarised to prevent incorrect insertion

Standards

UL (E29179); CSA (LR19980)

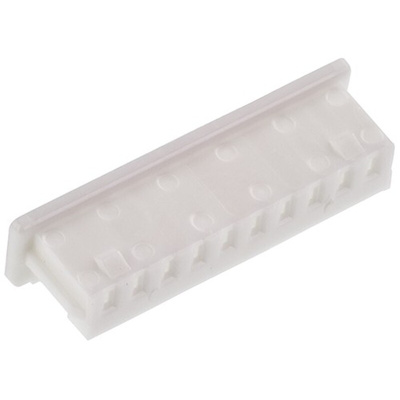

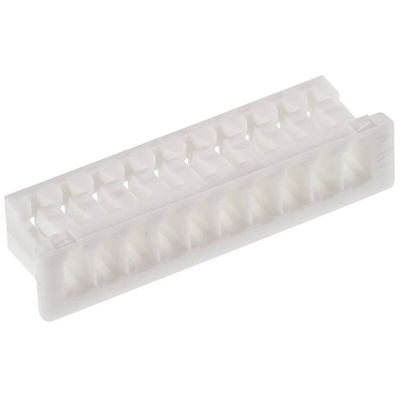

Molex Female Connector Housing, 10 Way, 1 Row - PicoBlade Series - 51021-1000

Enjoy robust protection for your wire-to-wire and wire-to-board connections with this Molex crimp receptacle. It keeps your connections protected against dust and moisture to ensure more reliable performance. The compact dimensions of 14.25 (length) x 3.2 (width) x 3.95mm (depth) and a narrow 1.25mm pitch mean it's simple to fit into cramped spaces. It features contacts for up to 10 connections in a single-row design that keeps your wires organised. Thanks to its PBT (polybutylene terephthalate) construction, the unit is highly resistant to impact and heat, so you can use it in demanding applications.

Features & Benefits

• Straight body orientation for ease of insertion
• Compatible with Molex's PicoBlade series of connectors for compact PCB (printed circuit board) set-ups
• Broad operating temperature range of -40°C to +85°C for use in harsh environments

Applications

• Agricultural industry
• Marine and water operations
• Signals and lighting control systems

How do I ensure a secure connection with this housing?

The housing features polarised crimp terminals to prevent mismating and straight friction locks to ensure a secure join that won't come loose, even in the event of heavy vibrations.

Approvals

UL (E29179); CSA (LR19980)
