Molex 1.25 mm PicoBlade PCB and SMT Header Connectors - 53047, 53048, 53261 and 53398 Series
PicoBlade PCB through hole and SMT mount header connectors with a compact design and a 1.25 mm pitch. These PicoBlade headers form part of a wire to board interconnection system that offers PCB space savings of up to 45% compared to 2.00 mm wire to board systems. The PicoBlade connector system is also able to provide the same 1 A current as similar 2.00 mm pitch connector systems. The housings of these PicoBlade headers have locking windows which engage with two latching ramps in the crimp housing to produce a friction locking mechanism. This friction lock provides a secure mating connection and prevents accidental unmating caused by mishandling or vibration. The SMT PicoBlade headers feature solder tabs that provide a secure retention on the PCB and act as a strain relief for the SMT solder tails. This feature also helps prevent solder joints form cracking due to mishandling. These 1.25 mm PicoBlade PCB and SMT headers are available in vertical and right angle mounting configurations.
Features and Benefits
• 1 A current capability in a compact 1.25 mm pitch design
• PCB space saving of up to 45% compared to 2.00 mm pitch
• Friction locking mechanism for secure mating connection
• Solder tabs for secure PCB retention (SMT versions)
Product Application Information
The PicoBlade 1.25 mm interconnection system is designed for use in high density harness applications. Typical applications include automotive alarms systems and car audio, DVD players, industrial process controls and medical patient monitors.

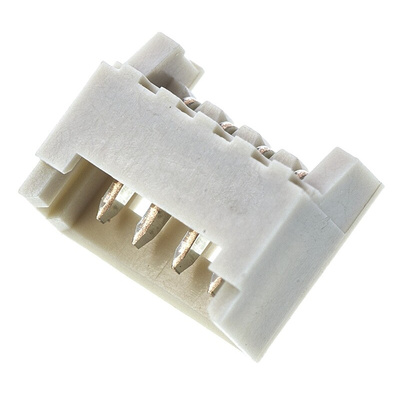

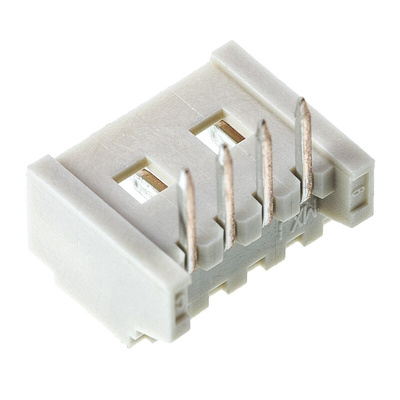

Molex PCB Header, 1A Maximum Current, Tin-Plated Contacts - PicoBlade Series - 53048-0410
Want a way to quickly connect multiple conductors? Use this PCB header from Molex for wire-to-wire and wire-to-board connections. It's a single-row unit with four contacts, so it helps you simplify your setup and make the most of available space. A two-point contact design means you can count on its reliability, even in vibrating or low-voltage conditions. You're assured of optimal electrical conductivity, thanks to the tin-plated contacts.
Features & Benefits
• Safe to use in challenging settings, thanks to a broad operating temperature range between -40°C and +85°C
• Space-saving right angle orientation to maximise board packing efficiency
• Nylon housing insulates against electric shocks
Applications
• Automotive manufacturing
• Medical technology
• Data and control centres
• Security systems
Can I be sure this header won't work loose?
As the terminal locks to its mating part, you can be sure of secure and durable mating, even with jostling and vibration.
Approvals
UL (E29179); CSA (LR19980)
