Schneider Electric Steel M4 Captive Nut AF1EA4

Schneider Electric Steel Clip Nut For Use With AA2 and AA3 Plates, M4 Thread - AF1EA4

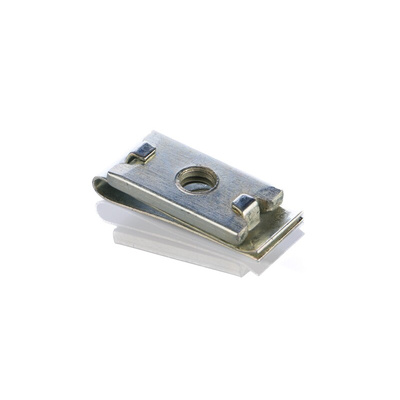

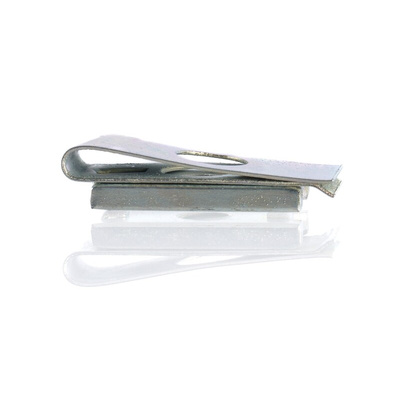

To securely attach mounting plates to the inside of your enclosure, opt for this clip nut from Schneider Electric. It's made from a strip of steel treated with zinc chromate that's folded into a U-shape and pre-drilled. This means you can slip it onto your AA2 and AA3 mounting plates and fix them quickly and easily without having to drill holes or solder. The nut's steel body offers high tensile strength and reliable corrosion resistance for use in damp environments. As this component is free of toxic metals, it's an environmentally responsible choice.

Features & Benefits

• Compact 0.005kg weight for easy handling and minimal strain on your setup
• Comes in a convenient pack of 100 to keep you stocked up
• Simple fixing for quick mounting and removal without specialist tools

Applications

• Manufacturing industry
• Public buildings
• Power stations
• Control panels

How do I attach this clip nut to a mounting plate?

Simply align the edge of the nut with a slot on your mounting plate and push to clip it on. Insert a standard M4 thread screw into the threaded hole to hold the plate in place.

Schneider Electric Accessories

Mounting and cabling accessories Data Sheet

Datasheet

Catalogue - Universal Enclosures
