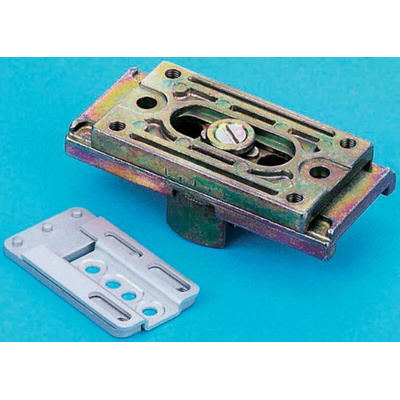

MH 04-3742A, Pepperl + Fuchs Mounting Bracket for Use with Varikont

'Varikont' Mounting Brackets for Limit Switch Style Sensors

Standard Type:

Two-part semi-fixed bracket for use with any of the standard ’Varikont’ range see typically stock no. 327-1457
Up to 30mm of movement along the axis of the unit

High Specification Type:

For use with any of the standard ’Varikont’ range see typically stock no. 327-1457
Allows movement of the sensor along its long axis, and rotation in the horizontal plane

’M’ – Type:

Two-part bracket for use with the Varikont ’M’ range of sensors see typically stock no. 257-2456
Allows 12mm of movement of the sensor along its long axis

Block and Limit Switch Style

All dc switches in this range have reverse polarity and short circuit protection. Embeddable versions can be flush mounted in metal.

Mounting Bracket MH 04-3742A Data Sheet
