XPEM110, Schneider Electric Industrial Duty Momentary On-Off Foot Switch - Metal Case Material, 1NC, 1NO, 3 A @ 240 V ac Contact, Ножной выключатель

Schneider Electric Footswitches - XPE Range

A wide range of metal housed footswitches brought to you from Schneider Electric, ensuring you start on the right foot! They are available with or without a protective guard cover. The guarded cover types are strongly recommended in high-risk areas where accidental starting of a machine, either by human action or falling objects could occur.

• Large surface area of pedal assures stability of foot and provides operator comfort
• High and wide protective cover accommodates large sizes and safety boots
• Can be fixed to the floor or on a support for improved stability
• Approvals - U/CSA
• Schneider Electrics XPE range of industrial footswitches are robust
• A great feature of this range of foot switches is that they allow the operator greater freedom of movement
• Available with or without trigger mechanism in 1 or 2 step configurations
• The trigger mechanism types of footswitch enable locking of the pedal in rest position, positive action is required before the pedal can be depressed
• Footswitches within the XPE range that feature 2-step contact operation are ideal for applications involving 2-speed machines
• The first step (6mm travel) operates one set of NC + NO contacts before the second step operates the other NC + NO contacts during full actuator travel (12mm)

Approvals

NF EN 60947-5-1, EN60204-1, NF E 09-031

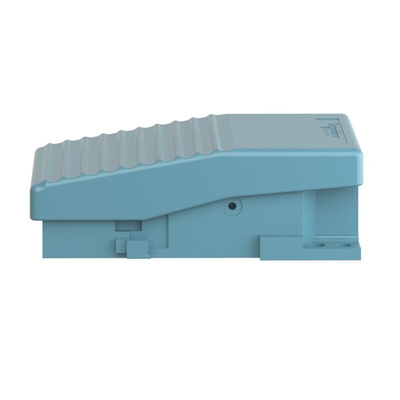

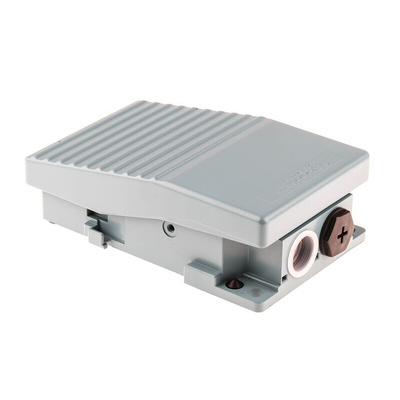

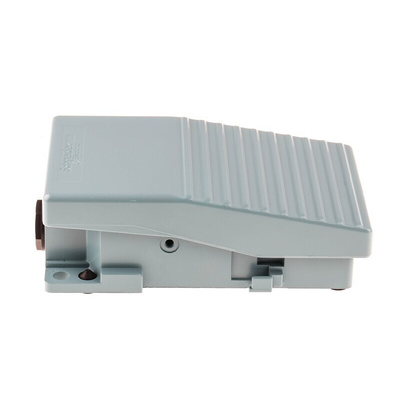

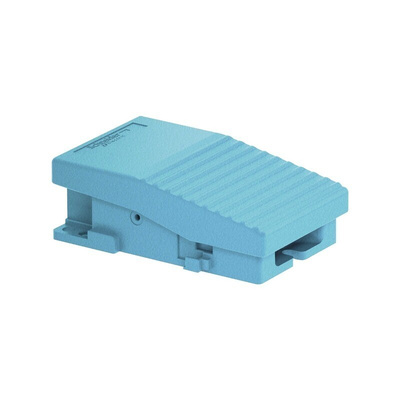

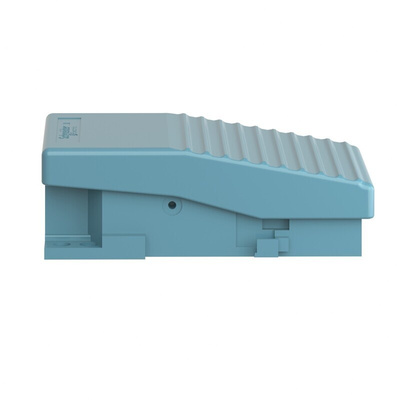

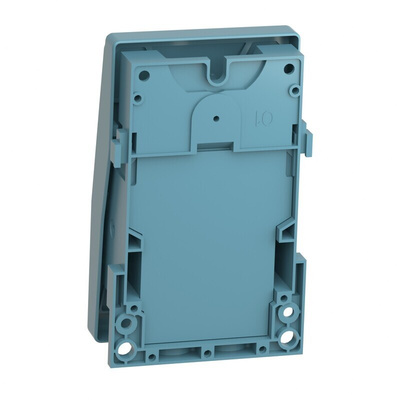

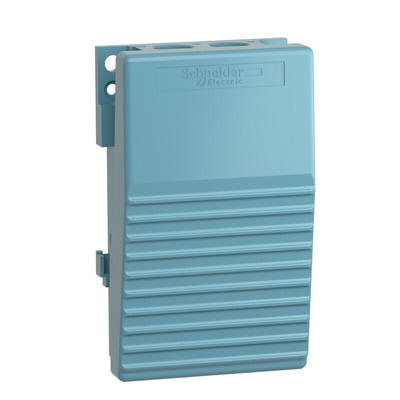

Schneider Electric XPEM Series Foot Switch, Metal, Blue - XPEM110

This Schneider Electric foot switch from the harmony XPE series is an industrial duty foot switch designed to meet the demands of automation, electronics, Electrical, and mechanical industries. With a robust metal construction and IP66 rating, this momentary foot switch is built to withstand challenging industrial environments. The contact current rating of 3A ensures reliable performance, while the green premium designation highlights Schneider Electric's commitment to sustainability. The blue colour adds a touch of visual distinction to this high quality foot switch.

Features & Benefits

• Industrial duty foot switch designed for heavy duty industrial applications
• Momentary On Off switch operation for precise control
• Metal foot switch construction for durability in industrial settings
• IP66 rating ensures protection against dust and water ingress
• Contacts current rating of 3A @ 240V AC for reliable performance
• Green Premium designation reflects Schneider Electric's commitment to sustainability
• Blue colour for visual differentiation in industrial environments

Applications

• Ideal for use in Industrial automation systems
• Suitable for controlling machinery and equipment in manufacturing plants
• Used in electrical panels for convenient machine operation
• Perfect for integration into industrial control systems for precise control

Can it withstand harsh industrial environments?

The Schneider Electric foot switch is designed to tolerate challenging industrial settings, making it suitable for a wide range of applications.

Will it provide reliable performance in automation systems?

With a contact current rating of 3A, this foot switch ensures consistent performance in automation and control systems.

Is it easy to integrate into existing machinery?

The foot switch is designed for easy integration into industrial control systems and machinery, making installation straightforward.

XPEM110 Datasheet

Harmony Control and Signaling Guide

Product Environmental Profile

Catalogue - Control and Signaling Units for Safety Applications

Instruction Sheet - XPEM110
