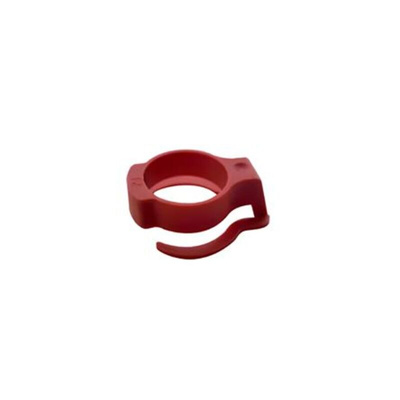

3130 10 04, Legris Polymer Pipe Clip, 10mm

Tamper-Evident Safety Clips

Legris Tamper-Evident Safety Clips, available in red, blue, green, yellow, black, and white, provide secure connections for Legris LF3000 instant fittings, as well as Legris LIQUIfit instant fittings and Legris pneumatic function fittings. The safety clips are easily installed, may only be removed using pliers, enable a visual indication should tampering occur, as well as providing a visual indication that tubing should not be disconnected without proper authorisation. The colour-coding of the Legris Tamper-Evident Safety Clips helps distinguish one fluid circuit from another when one colour clip is installed for use within a designated fluid circuit.

Legris Tamper-Evident Safety Clips are compatible with air, grease, and cleaning agents, available for metric and imperial size tubes, may be installed for use within environments from -20°C to 150°C, and are manufactured from tough fibreglass-reinforced polyamide 6-6.

The Legris Safety clip is a blue color safety clip. It is an accessories for Push In fittings. This safety clip can be mounted on LF 3000 and LIQUIfit fittings. It is suitable for robotics, automotive, robotics, automotive process, pneumatics, semi conductors, textile, water treatment, beverage dispensers, pneumatic, textile, packaging, vacuum application.

Easy disconnection with tool
Prevents accidental disconnection
Protection of operators and equipment
Resistance to grease and cleaning agent

Datasheet - 3130 10 04
