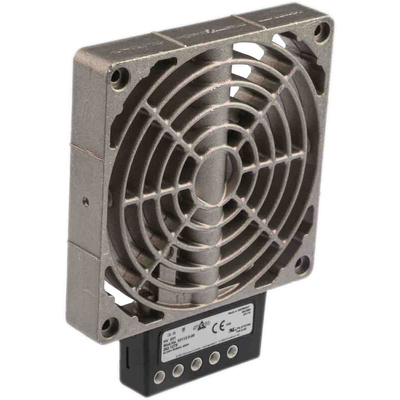

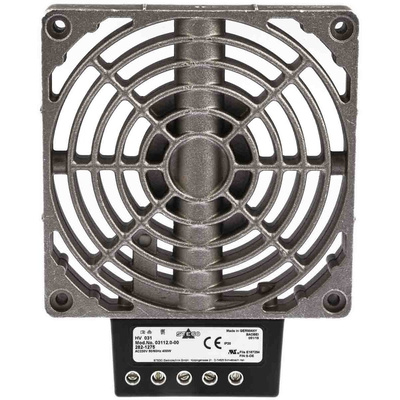

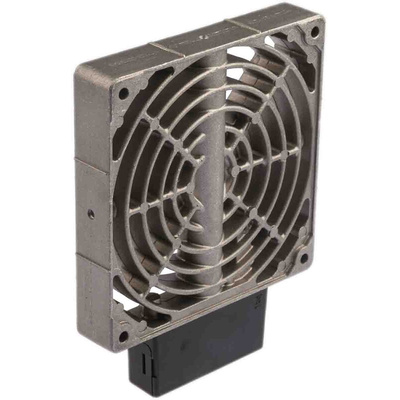

03112.0-00, STEGO Enclosure Heater, 230V ac, 400W Output, 400W Input, 22mm x 119mm x 151mm, Обогреватель

Stego High Performance Cartridge Heaters

Stego high performance cartridge heaters prevent the formation of condensation and provide an evenly distributed interior air temperature in enclosures.

Heating element: high performance cartridge
Overheat protection: built-in temperature limiter
Heater body: die-cast aluminum, glass bead finish
Connection: 3-pole terminal AWG 14 max. (2.5mm²), torque 0.8Nm max.
Connection housing: plastic, UL 94V-0, black
Mounting: clip for 35mm DIN rail, EN 60 715
Mounting position: horizontal
Operating / Storage temperature: -49 to +158°F (-45 to +70°C)
Protection class / Protection type: I (grounded) / IP20
Axial fan, ball bearing service life: 50,000h at 77°F (25°C)
Axial fan connection: 2-pole terminal AWG 14 max. (2.5mm²), terminals L2/N2

Note

Fans need to be purchased separately: stock no. 211-9336 (80mm²) or 211-9314 (120mm²).

Enclosure,compact cartridge heater,din rail mounting Product Data
