66259-2, TE Connectivity Male Crimp Circular Connector Contact, Contact Size 16, Wire Size 10 → 8 AWG, Контакты разъема

Series 3 Contacts

Gold plated male and female copper contacts, which will accept wire sizes of 16-12 awg (1·25-3·0mm²) and 10-8 awg (5·0-8·0mm²).Two Certicrimp tools are available to cover 16-12awg and 10-8awg, and an extraction tool is also available.

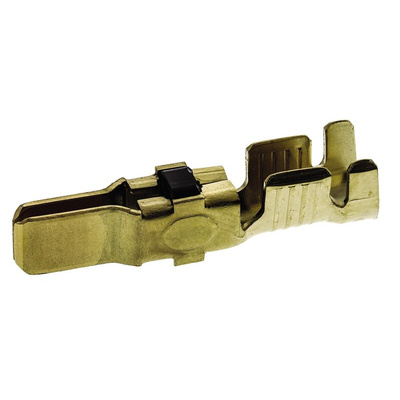

TE Connectivity Pin Contact

The TE Connectivity Type XII series 3-pin male circular contact connector has a contact size of 16 and wire size ranging between 10AWG and 8AWG. This contact is made of brass and has gold over nickel contact plating. It can be used with CPC connectors, G series connectors and M series connectors.
Note:
The correct assembly procedures must be followed to ensure a full IP65 rating
Series 5 power connectors have 3-pole Powerband contacts
Series 6 power connectors have eight signal and 2 Powerband contacts
A wire entry seal is required in conjunction with the back shell
Include the flange seal with the panel socket for full sealing capabilities

Features and Benefits

Current rating is 35A
Cable mount
Crimp termination
Operating temperature ranging between -55°C and 125°C

TE Connectivity CPC Contacts & Tooling

Contacts and Tooling for Series 1, 2 and 3 of the CPC range of connectors.

CSA 007189 A 00

UL E28476

CSA 7189

Datasheet - 66259-2
