C48CD102, Red Lion, 6 Digit, LCD, Counter, 85 → 250 V ac, Счетчик

Type C48C - preset counter with 2 presets

18 different counter operation modes, e.g. ascending counter, ascending/descending counter or phase discriminator
Very wide range of applications can be realised with ease

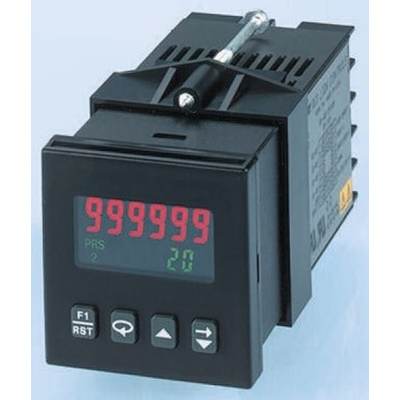

Red Lion Digital Counter

The Red Lion C48C series 6-digit LCD display, dual preset, panel mount device. It has a voltage rating ranges between 85VAC and 250VAC. The 7-segment, 2-line, backlit LCD display has positive reflective or negative transmissive models with the red top line and green bottom line backlighting. It offers a choice of nine programmable counting modes for use in applications requiring bi-directional, anti-coincidence, and quadrature counting. This counter has a maximum count frequency of 50/60Hz.

Features and Benefits

•
Dual relay outputs
• Bi-directional and quadrature counting
• Status indicator for outputs
• Programmable user inputs and front panel function key
• Front dimensions is 49.5mm x 49.5mm
• Horizontal or vertical stacking of multiple units
• Plug in screw terminal
• RS485 serial communications option
• Choice of numeric data entry modes
• DIP switches are used for input configuration setup
• Operation temperature ranges between 0°C and 50°C

Applications

•
Industrial counting applications
• Control and monitoring systems
• Manufacturing assembly line

Certifications

•
IP65 rated
• cULus approved
• CE certified
• NEMA4X
