09140009950, HARTING Heavy Duty Power Connector Module, Female, Han-Modular Series

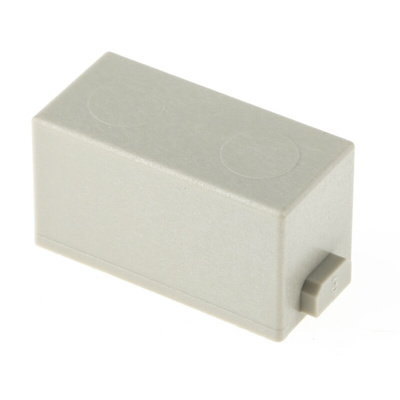

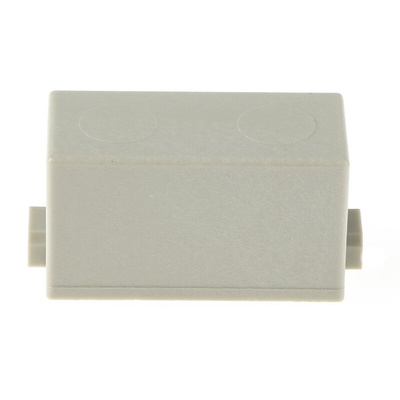

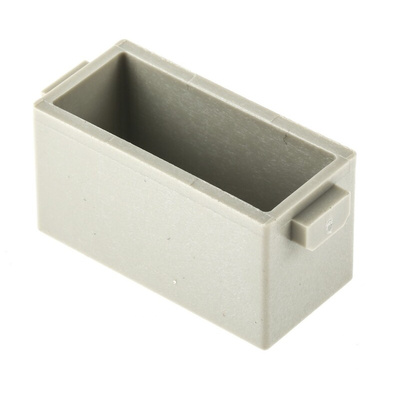

Han Dummy Module

Han dummy module, for use when blanking off unused Han ports, suitable for use in all hinged frames, Han-Modular® Compact, Han-Modular® Twin, Han-Modular® Docking Frames, Han-Eco® and Han-Yellock®.

Insert to fill spaces which are not used in the frame

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Han dummy insert module Drawing
