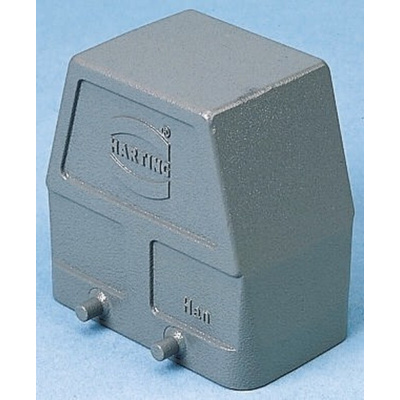

09300240801, HARTING Han B Heavy Duty Power Connector Hood

Undrilled Han covers

Hoods with no pre-drilled outputs.
To be drilled by the user, according to their specific requirements.
Can be used with Han E connectors of a corresponding size and with the Han-Modular series.

Approvals

UL, CSA, SEV, BVS,
CERCHAR etc.

Range 10 - (Harting Size 48B)

These Range 10 hoods and housings are a wide bodied version of the Range 8 types and take two inserts of each size and are compatible with appropriate inserts from the Han D®, DD, E, ES, EE, Com, D AV, E AV and Modular series. The 'compatibility' table associated with item type 1 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range. Note: Two inserts or two 'frames' from the Modular series of Han 'Size' 24B are accommodated within these 48B housings.

Han 24B-g Hood Drawing
