RS PRO 5-Way Double Screw Earth Terminal Block, 0 to 16mm², 0 → 16 AWG Wire, Screw Down, Brass Housing, Блок заземления

RS PRO 5-Way Screw-Down Double Screw, 60 mm Length 0 → 16 AWG

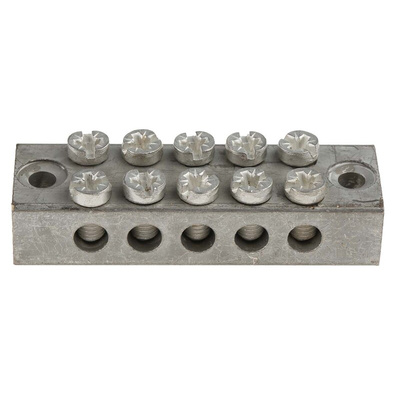

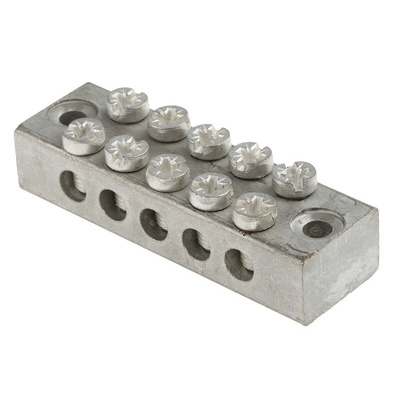

Connect electrical systems safely with this RS PRO screw-down terminal block. Featuring two rows of five screws, this rectangular block consists of a brass housing and a screw-down terminal. It's used in a wide array of different types of earthing and grounding applications, including distribution boards, control centres and the termination of earth conductors.

Terminal block connectors are useful in situations that require semi-permanent connections, which may require inspection, wire replacement and repair. The screw-down termination method lets you insert the wires and then clamp them down with just a single screw. This provides a strong, long-lasting connection – and you don't even need to do any soldering. The terminal block supports wire sizes up to 16 mm².

Part of the RS PRO range, this terminal block has been thoroughly for reliability. The brass housing meets British safety standards BS 249 and BS 1872 for brass components.

Features and Benefits

• Double screw earth terminal block
• Screw-down termination method
• 5 ways
• Nickel-plated finish
• Wire size of 0 mm² to 16 mm² (0 to 16 AWG)
• Length of 60 mm
• Width of 18.50 mm
• Height of 12.20 mm
• Brass housing material conforms to the British standards BS 249 and BS 1872 on leaded brass rods and electroplated tin coatings

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

BS 249; BS1872

RS PRO Datasheet
