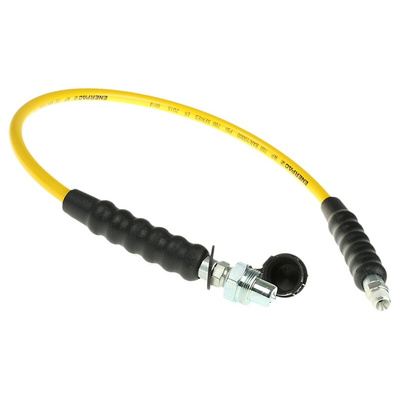

HC7203, Enerpac 900mm PU Hydraulic Hose Assembly, 700bar Max Pressure, Шланг

High Pressure Hose

Themo plastic hydraulic hoses for use in demanding environments and applications. The hoses come supplied with a male coupling ready assembled for direct connection to a pump or cylinder and have a maximum working pressure of 700 bar.

4:1 design factor
Four layer design, including 2 high strength steel wire braids
Outside jacket is polyurethane, for maximum abrasion resistance

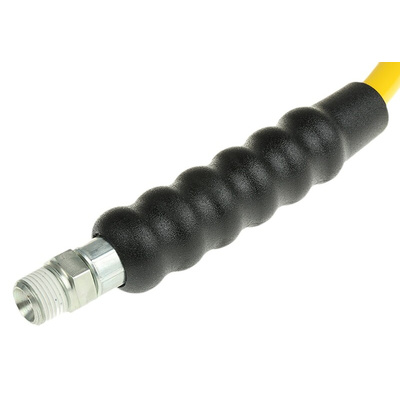

Crimped on rubber strain relief for improved life and durability

Note

Use hose 365-0125 with flat cylinder 283-0982

Hose Fittings & Accessories

Components for use with the Enerpac range of high-pressure hydraulic equipment. All fittings and valves are 700 bar pressure-rated and have 3/8 - 18 NPTF threads.

Note

Working pressure quoted is the maximum acceptable system pressure: 700 bar (10k bar).

H700-Series, High Pressure Hoses Data Sheet
