RS PRO Inline Mounting Hydraulic Flow Control Valve, G 1/4, 210bar, 20L/min, Клапан

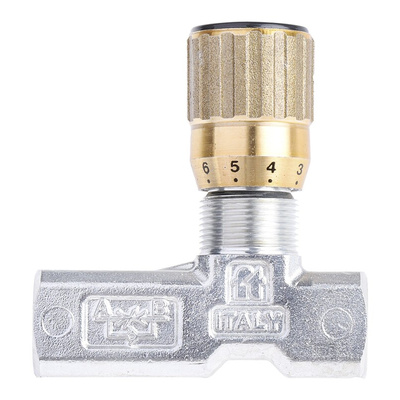

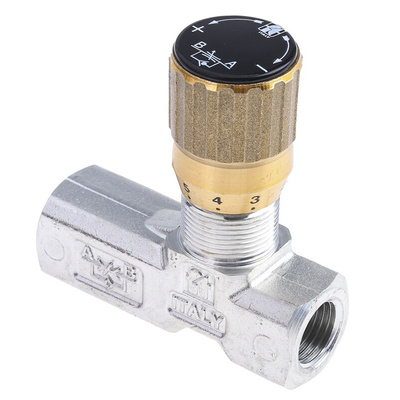

RS PRO Line Mounting Hydraulic Flow Control Valve, G 1/4 in, 210 bar

Use this line mounting hydraulic flow control valve from RS PRO to help you shut off and control flow in a wide range of hydraulic systems. The needle-operated valve can handle flow rates up to 20 litres per minute.

The control valve is single-acting, which means it allows you to control the flow in one direction only, with a free flow in the opposite direction. It fits onto a 1/4 G-type thread and can operate at pressures up to 210 bar.

The body of the valve is made from corrosion-resistant, nickel-plated brass. It has a nitrile rubber seal, which is both abrasion-resistant and able to keep out petroleum-based products.

Part of the quality RS PRO range, this flow control valve has been rigorously tested for consistency and reliability. An essential element in hydraulic systems, valves of this type are used in applications ranging from dishwashers to rides in amusement parks.

Features and Benefits

• Line mounting hydraulic flow control valve
• Nickel-plated brass body
• Nitrile rubber seal
• Standard G 1/4 in thread
• Maximum flow rate of 20 L/min
• Maximum operating temperature of +100˚C
• Minimum operating temperature of -20˚C
• Maximum operating temperature of 210 bar
• Manufacturer series FT1251/5
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
