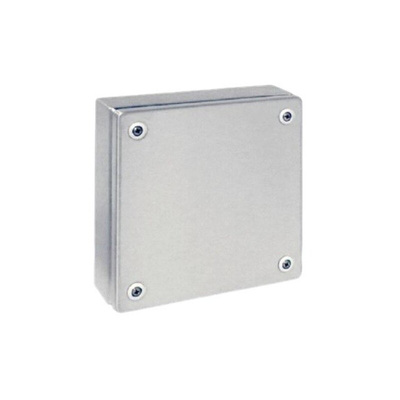

1523010, Rittal KL Series 304 Stainless Steel Terminal Box, IP66, 200 mm x 200 mm x 80mm, Настенный шкаф

Stainless Steel Terminal Boxes, KL Series

The KL Series enclosure from Rittal is folded and welded from a single piece of 1.25 mm stainless steel. The cover of the enclosure has a channel with a foamed-in PU seal providing IP66 protection. The inside of the enclosure has profiles with mounting holes for easy installation of a chassis plate or DIN rail.

Retaining cord
Profile strips on both sides of enclosure ensure maximum mounting depth is achieved
Facilities for mounting C rail and 'top hat' DIN rail
Polyurethane sealing gasket
Material 304 / 1.4301 stainless steel

Approvals

UL, CSA, TUV, VDE

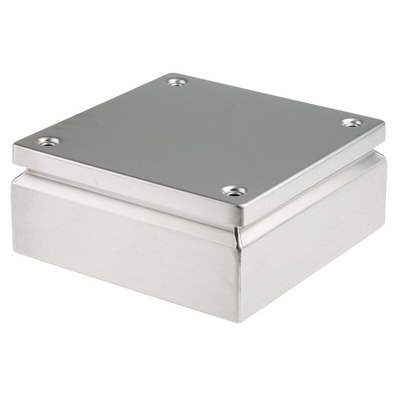

Rittal Stainless Steel Wall Box, 200mm Width, 200mm Height - KL Series - 1523010

This wall box from Rittal keeps your electrical terminals protected against tampering and unauthorised use. The box has a compact, 200mm square design with an 80mm depth that's ideal for fitting a socket or a light switch. It comes with the fixtures for mounting to a slotted channel C-rail or a 'top hat' DIN rail for simple and secure installation. There's also a retaining cord that holds the cover in place, preventing it from coming open unintentionally.

Features & Benefits

• Profiled screw holes for secure fastening
• 304-grade stainless steel body material for resistance to impact and corrosion
• No window means the contents are shielded from view for enhanced security
• PU (polyurethane) sealing gasket insulates contents from UV (ultraviolet) light, contaminants and temperature changes
• Grooved cover edges for an enhanced protective seal

Applications

• Janitorial offices
• Utility control rooms
• Building complexes
• Factory work areas

Is this wall box sealed against moisture and dust?

Yes, this wall box has an IP66 (ingress protection) rating, meaning it can withstand exposure to dust and high-pressure water jets from any direction.

Approvals

UL; CSA; TUV; VDE

Certificate

Datasheet

Instruction Sheet - Terminal Boxes KL Stainless Steel

Catalogue - Terminal Boxes KL

Datasheet - 1523010

Dimension Sheet - Terminal Boxes KL
