1526010, Rittal KL Series Stainless Steel Terminal Box, IP66, 300 mm x 300 mm x 120mm, Настенный шкаф

Stainless Steel Terminal Boxes, KL Series

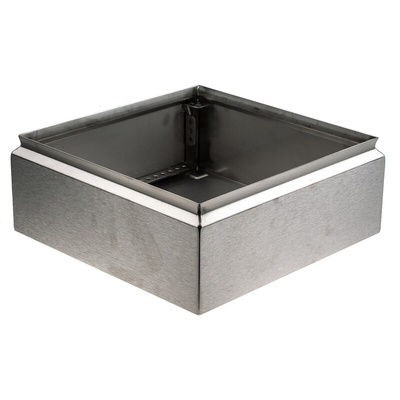

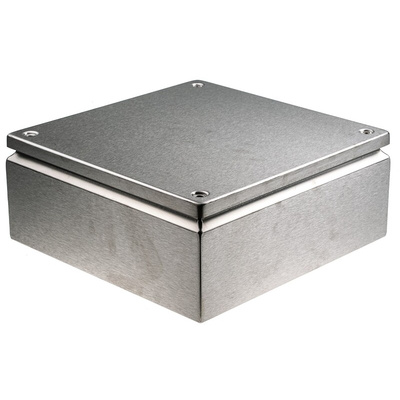

The KL Series enclosure from Rittal is folded and welded from a single piece of 1.25 mm stainless steel. The cover of the enclosure has a channel with a foamed-in PU seal providing IP66 protection. The inside of the enclosure has profiles with mounting holes for easy installation of a chassis plate or DIN rail.

Retaining cord

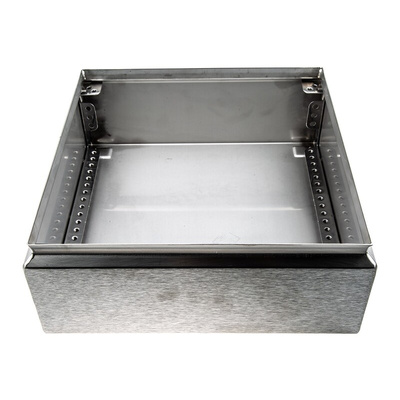

Profile strips on both sides of enclosure ensure maximum mounting depth is achieved
Facilities for mounting C rail and 'top hat' DIN rail
Polyurethane sealing gasket
Material 304 / 1.4301 stainless steel

Approvals

UL, CSA, TUV, VDE

Rittal Stainless Steel Terminal Box, 300mm Height, 300mm Width - KL Series - 1526010

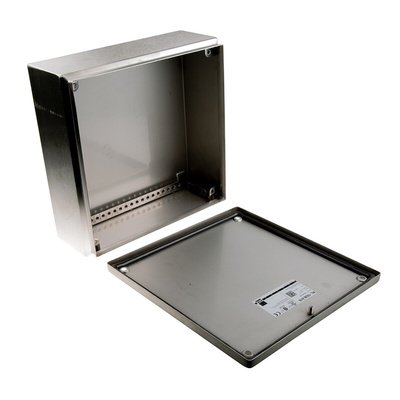

Use this terminal box from Rittal to keep your sensitive wiring safe. It's made of stainless steel for effective resistance to impact and corrosion. The box features a cover that can be secured in place using four screws to help prevent tampering. Its IP66 rating means it's dust-tight and protected against high-pressure water jets, making it suitable for use in demanding environments.

Features & Benefits

• Compact dimensions of 300 (height) x 300 (width) x 120mm (depth) for space efficiency
• Polyurethane seal helps safeguard equipment against contaminants

Applications

• Residential power connections
• Retail industry
• Warehousing and distribution centres

Can I use a DIN rail with this terminal box?

Yes, you can use the mounting holes on the inside of the box to install a DIN rail or chassis plate, making it a versatile choice.

Approvals

UL; CSA; TUV; VDE

Certificate

Datasheet

Datasheet - 1526010

Instruction Sheet - 1526010
