1010600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 600 mm x 600 mm x 210mm, Настенный шкаф

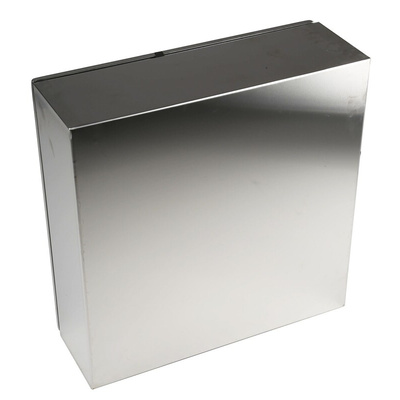

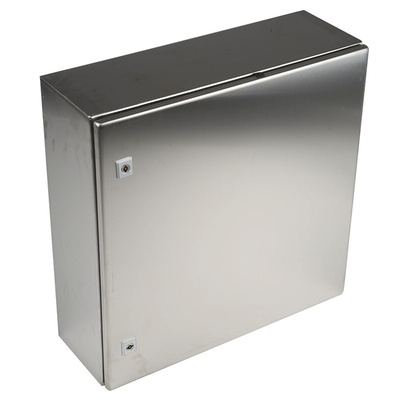

Rittal Stainless Steel Wall Box, IP66, 210mm Depth - AE Series - 1010600

This hard-wearing wall box from Rittal is used to house electrical and mechanical components in domestic, commercial and industrial environments. It protects sensitive parts from harmful dust, water and contaminants thanks to its IP66 rating, meaning it's shielded against dust and high-pressure water jets. This enclosure is made of stainless steel, which is highly durable and corrosion-resistant for long-lasting use in harsh environments. It also has a cam-lock door to prevent unauthorised access for added safety.

Features & Benefits

• Compact dimensions of 600 (height) x 600 (width) x 210mm (depth) for use in areas where space is limited
• Modular design for easy installation and dismantling
• Stainless steel mounting plate for a strong hold on a wall

Applications

• Communication stations
• Power distribution units
• Circuit protection systems

Do I need to earth this wall box?

This enclosure is an exposed conductive part, so it needs to be earthed. The easiest and most reliable way to do this is to insert a metal grounding screw into the threaded hole at the back of the box.

Approvals

UL; CSA; TUV; VDE
