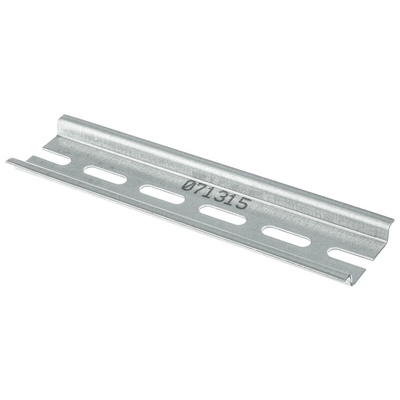

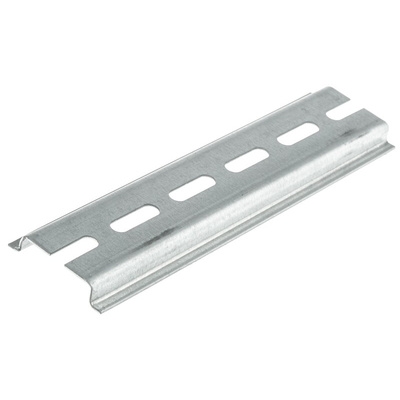

2314000, Rittal Sheet Steel Perforated DIN Rail, Top Hat Compatible, 137mm x 35mm x 7.5mm

Rittal DIN Rails, For Use With KL and AE Enclosures, 137mm Length - SZ2314000

These DIN rails from Rittal offer a secure way to store your electrical hardware. They're quick to screw into the wall of an electrical cupboard or enclosure using the terminal holes in the centre. Once the DIN rails are installed, electrical consoles and equipment can be slotted into place along the outer grooves of the rails for quick and simple mounting. Each rail has a compact size of 137 (length) x 35 (width) x 7.5mm (height), making it a suitable size for fitting into Rittal's KL and AE series enclosures.

Features & Benefits

• Centre cut-outs are elongated to provide room for devices of varying width
• Light weight of 44g per rail places minimal strain on the enclosure wall
• High-strength sheet steel material for resistance to impact and wear
• Zinc-plated finish for resistance to corrosion

Applications

• Relay sockets
• Amplifiers
• Signal conditioners
• Residual current devices
• Circuit breakers

How many DIN rails are supplied per pack?

There are ten DIN rails supplied per pack, allowing you to install a large number of devices.
