RS PRO Inline Mounting Hydraulic Flow Control Valve, BSP 1/4, 210bar, 20L/min, Клапан

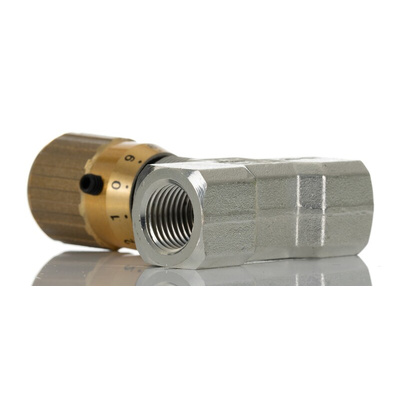

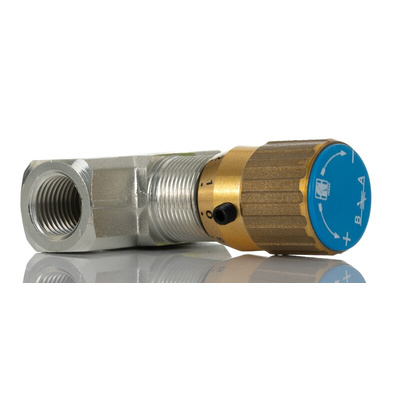

RS PRO Line Mounting Hydraulic Flow Control Valve, BSP 1/4 in, 210 bar

This line-mounting hydraulic flow control valve from the reliable RS PRO range can be used to control and shut off the flow in hydraulic systems. As a single-acting valve, it allows flow control in one direction, with free flow in the opposite direction.

With a body made from nickel-plated brass, the needle-operated valve offers excellent corrosion resistance. Nitrile rubber seals resist abrasion and petroleum products and work well at both high and low temperatures. It fits onto a 1/4 in thread and will work at temperatures ranging between -20˚C and +100˚C, as well as up to a maximum pressure of 210 bar. What's more the valve can handle a flow rate of up to 20 litres per minute.

This kind of valve is a key component of hydraulic systems. Hydraulic systems are found in a wide range of applications including dishwashers, construction machines and amusement park rides.

Features and Benefits

• Line mounting hydraulic flow control valve
• Nickel-plated brass body
• Standard BSP 1/4 in thread
• Maximum flow rate of 20 L/min
• Maximum operating temperature of +100˚C
• Minimum operating temperature of -20˚C
• Maximum operating temperature of 210 bar
• Manufacturer series FT1251/2
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
