RS PRO Steel Single Inline Mounting, Hydraulic Check Valve, G 1/4, 15L/min, Обратный клапан

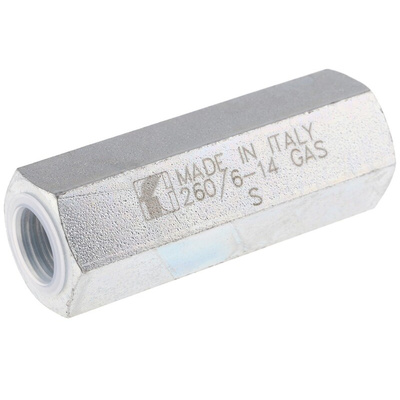

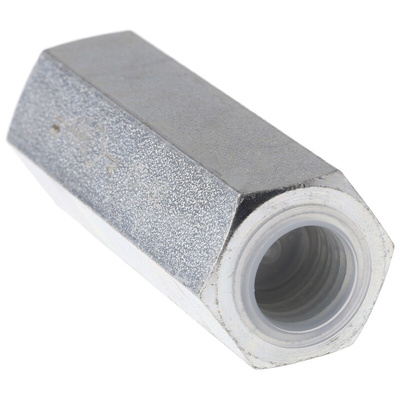

RS PRO Steel Inline Mounting, Hydraulic Check Valve, G 1/4, 15 L/min

Need a reliable check valve for your hydraulic system? This RS PRO inline mounting valve is easy to install, connecting directly to your pipeline. It's made from a strong stainless steel material with a corrosion-resistant Nylon guide for increased durability.
The ball mechanism is spring-loaded for positive action, so it can be fitted vertically or horizontally, giving you greater flexibility. This valve has a standard CETOP (Comité Européenne des Transmissions Oléohydrauliques et Pneumatiques) mounting pattern, so it can be used in a wide variety of hydraulic, pneumatic and mechanical applications.
The soft-seated thermoplastic ball material creates a tight seal, so it can be used with gas. For systems that use water, try an alternative component, such as a zinc-passivated carbon steel valve instead.

Features and Benefits

• Steel body material
• G 1/4 connection port thread
• Maximum flow rate of 15 L/min
• Maximum operating pressure of 350 bar
• Operating temperature range of -20°C to +100°C
• Inline mounting type
• Thread size of 1/4 in
• Thread standard is G

RS PRO Datasheet
