0034.6602, SchurterPC Board Non Resettable Fuse, Radial 50mA, 250V ac, Предохранитель

Microfuse fuses - MSF and MST series

Miniature fuses for soldering onto PCB or carriers.
Fast-acting (MSF) or time-delay (MST) fuses. Low breaking capacity.

Standards

EN 60127, IEC 127-3//3, DIN-VDE 0820

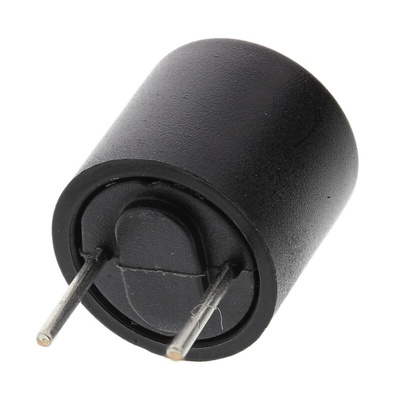

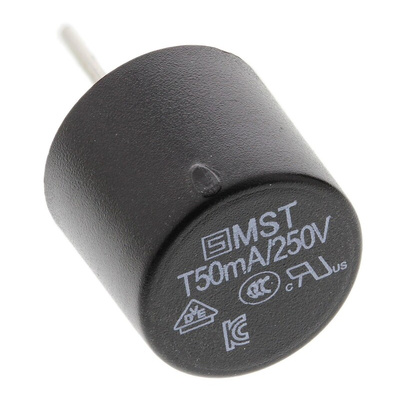

Schurter Radial T Leaded PCB Mount Fuse

The Schurter radial T leaded is designed for direct solder mounting on PCB or carriers. It is a fast-acting fuse with low breaking capacity and has a thermoplastic body.

Features and Benefits

• Breaking capacity is 35A
• Current rating is 50mA
• Lightweight
• Operating temperature ranges between -55°C and 125°C
• Quick acting
• Rated voltage is 250VAC
• Resistance to soldering heat of 260°C/10s

Applications

• Electronic applications
• PCBs

Certifications

• CSA C22.2 no. 248.14
• IEC 60127-3/4
• ITU-T K.20 and K.21
• Telcordia GR-1089
• TIA-968-A
• UL 248-14
• UL 60950/IEC 60950

All fuses have Thermoplaste Polyamide bodies
