0034.6611, SchurterPC Board Non Resettable Fuse, Radial 400mA, 250V ac, Предохранитель

Microfuse fuses - MSF and MST series

Miniature fuses for soldering onto PCB or carriers.
Fast-acting (MSF) or time-delay (MST) fuses. Low breaking capacity.

Standards

EN 60127, IEC 127-3//3, DIN-VDE 0820

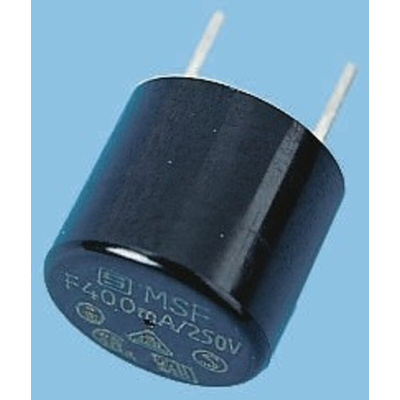

Schurter Radial T Leaded PCB Mount Fuse

The Schurter radial T leaded is designed for direct solder mounting on PCB or carriers. It is a fast-acting fuse with low breaking capacity and has a thermoplastic body.

Features and Benefits

• Breaking capacity is 35A
• Current rating is 400mA
• Lightweight
• Operating temperature ranges between -55°C and 125°C
• Quick acting
• Rated voltage is 250VAC
• Resistance to soldering heat of 260°C/10s

Applications

• Electronic applications
• PCBs

Certifications

• CSA certified
• DIN-VDE 0820
• EN 60127
• IEC 127-3//3
• SEMKO approved
• SS-428- 05-22
• UL approved

All fuses have Thermoplaste Polyamide bodies

FUSIBLE MINIATURE
