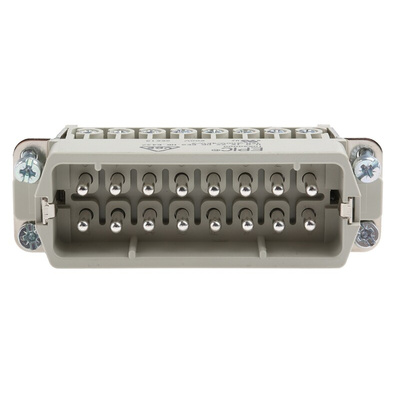

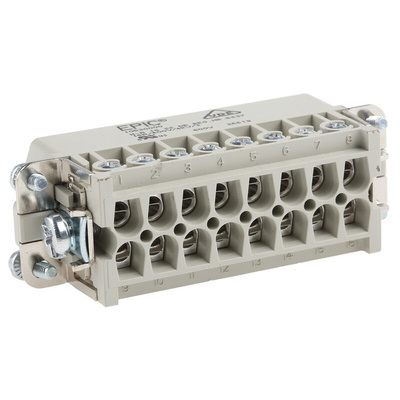

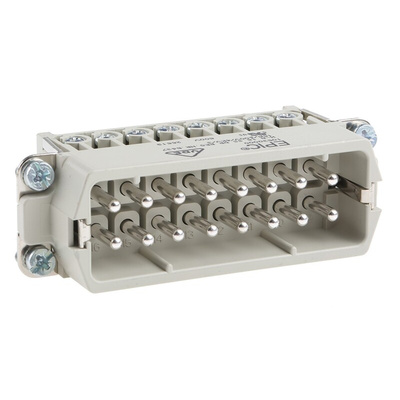

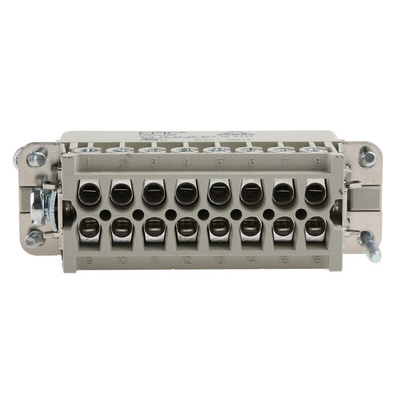

10530000, Epic Contact Heavy Duty Power Connector Insert, 14A, Male, H-A Series, 16 Contacts

LAPP Heavy Duty Power Connector Insert, Cable Mounting, 2 Rows - EPIC Series - 10530000

Use this heavy duty power connector insert from LAPP to get a firm grip on your connector's contacts. It's designed to fit snugly inside a housing or hood and has screw-in connections for hassle-free installation. The terminals are compatible with cables sized from 0.5 to 2.5 mm², so it's widely compatible. This durable piece of kit has a wide operating temperature range between -40°C and +120°C, making it a practical choice for extreme settings.

Features & Benefits

• Highly conductive copper alloy contacts for steady current transmissions
• Integrated compression glands seal circular cables to prevent dirt contamination
• Flame-retardant PC body helps prevent the spread of fire

Applications

• Assembly lines
• Transportation industry
• Robotics systems

How durable is this insert?

A mechanical operation rating of up to 500 cycles means you can rest assured this insert will keep up with demanding operations.

Approvals

UL listed; CSA certified; SEV

Inserts & Accessories

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

CSA 53004

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

Datasheet - 10530000

Instruction Sheet - 10531000
