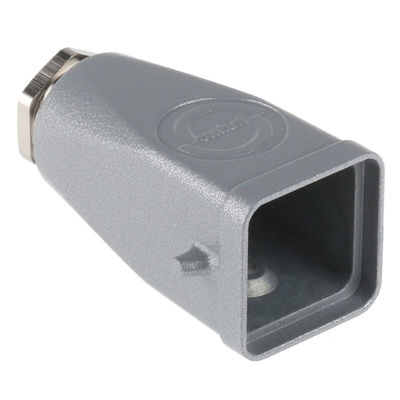

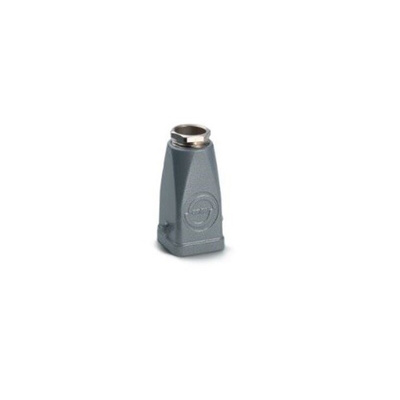

10426500, Epic Contact H-A Heavy Duty Power Connector Hood, PG11 Thread

LAPP Heavy-Duty Power Connector Hood, 600V AC Maximum Voltage, 10A Maximum Current - EPIC Series - 10426500

Cloak your connector in a durable protective housing with this LAPP heavy-duty power connector hood. It's suitable for use in industrial control cabinets and you can use it to hook up machine-building systems in demanding settings where contamination is likely. The hood's made from tough die-cast zinc, so it shrugs off wear and tear as well as corrosion.

Features & Benefits

• Maximum operating voltage of 600V AC, making it compatible with demanding power networks
• Straight cable entry for quick and simple wiring
• Single-lever locking, offering an easy yet secure connection
• Broad operating temperature range between -40°C and +100°C for use in hazardous industrial settings

Applications

• Drive technology
• Industrial automation
• Telecommunication networks

What's the cable clamping range of this connector hood?

Theis versatile component has a wide cable clamping range between 6.5 and 12mm.

Approvals

UL listed; CSA certified; SEV

Plastic Plug and Socket Kits (10A)

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4 way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

Approvals

UL listed, CSA certified, SEV

CSA 53004

EPIC DA-VINCI H-A Tüllengehäuse / Hood / Capot

EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications

Datasheet - 10426500

Instruction Sheet - 10426500
