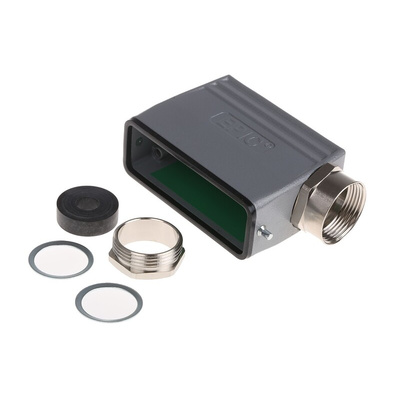

10564500+12954500, Epic Contact H-A Heavy Duty Power Connector Hood, 16 Contacts, PG21 Thread

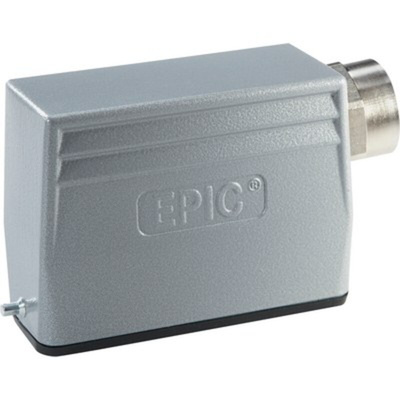

LAPP Heavy-Duty Power Connector Hood, Aluminium Alloy Housing, 16P+E Pole Format - EPIC Series - 10564500+12954500

To safeguard a heavy-duty contact insert in your circuit, put this connector hood from LAPP on duty. By keeping out dirt, moisture and other contaminants, it makes sure your connector can stand up to the demands of harsh environments. With its tough aluminium alloy body delivering protection from hard impacts and corrosion, this unit packs a punch in challenging settings.

Features & Benefits

• Integrated locking screws achieve a secure hold on your cable
• Wide operating temperature range of -40°C to +100°C to withstand harsh settings
• NBR seals are resistant to oils, solvents and chemicals for durability

Applications

• Power plants
• Railways
• Automotive engineering
• Manufacturing industry
• Conveyor systems

How do I connect my cable to this hood?

Connecting your cable to this hood is a simple matter of passing it through the pre-drilled port at the hood's side.

Approvals

UL listed; CSA certified; SEV

Plastic Plug and Socket Kits (10A)

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4 way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

Approvals

UL listed, CSA certified, SEV

CSA 53004

EPIC DA-VINCI H-A Tüllengehäuse / Hood / Capot

EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications

EPIC Connector Accessories

8079776_Catalogue_en

Instruction Sheet - H-A Hood

Datasheet - 10564500+12954500
