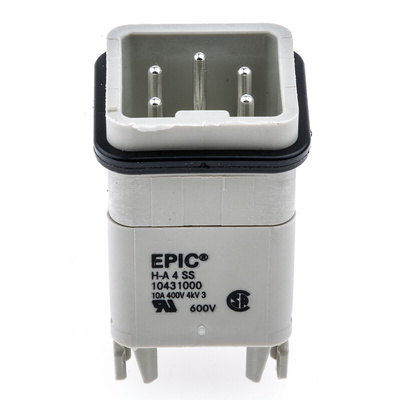

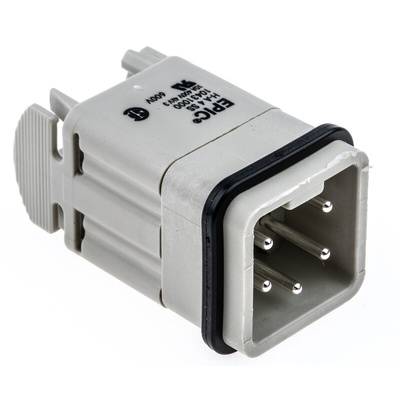

10431000, Epic Contact Heavy Duty Power Connector Insert, 10A, Male, H-A Series, 4 Contacts

LAPP Heavy-Duty Power Connector Insert, 4 Contacts, Cable Mount - EPIC Series - 10431000

Make secure electrical connections in demanding environments with this heavy-duty power connector insert from LAPP. The 4-pole male connector slots easily into the EPIC series of housings to help you assemble a robust system that can stand up to dust, moisture and mechanical stresses. With a width of just 23.3mm, this device is a suitable option in setups where space is limited.

Features & Benefits

• Straight cable entry into the contacts minimises stress on the wiring
• Screw terminations are easy to install and maintain
• Operating temperature range of -40°C to +100°C (+125 °C for short periods) makes it suitable for harsh environments
• Silver-plated copper contacts offer excellent conductivity

Applications

• Machine and equipment manufacturing
• Control engineering

What size wires does this insert accept?

This insert accepts wires sized up to 2.5mm².

Approvals

UL listed; CSA certified; SEV

Inserts & Accessories

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

CSA 53004

Datasheet - 10431000
