10442000, Epic Contact H-A Heavy Duty Power Connector Housing

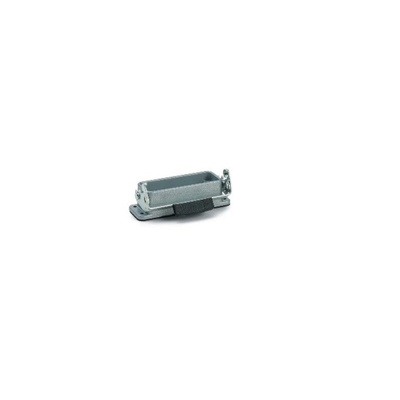

LAPP Heavy-Duty Power Connector Housing, Aluminium Alloy, Single Lever - EPIC Series - 10442000

To protect your electrical contacts in harsh industrial environments, try this heavy-duty connector housing base from LAPP. A robust aluminium alloy construction gives it an extended service life in harsh settings. As aluminium resists corrosion, you can be assured there's little chance of it rusting in moist operating conditions. A single-lever locking mechanism lets you quickly secure the housing in place and ensures a firm hold that minimises the risk of loosening during operation.

Features & Benefits

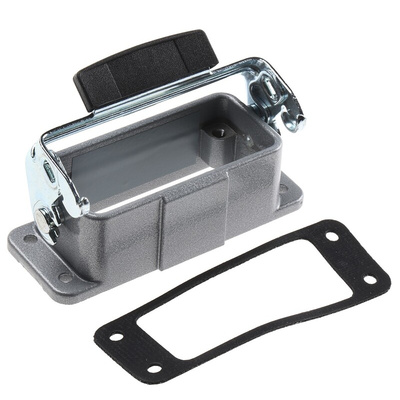

• Comes with a gasket to stop water and dust from entering the housing and affecting power connections
• Nitrile rubber seal resists chemicals and the weathering effects of UV light for longevity
• IP65-rated housing, when latched, is dust-tight and protected against low-pressure water jets

Applications

• Industrial automation
• High-voltage electrical systems
• Transportation industry

What's the operating temperature range of this connector housing base?

This component's wide operating temperature range of -40°C to +100°C makes it safe for industrial use.

Approvals

UL listed; CSA certified; SEV

Plastic Plug and Socket Kits (10A)

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4 way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

Approvals

UL listed, CSA certified, SEV

CSA 53004

EPIC DA-VINCI H-A Anbaugehäuse / Panel mount base / Embase encastrée & Sockelgehäuse / Surface mount base / Embase en saillie

EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications
