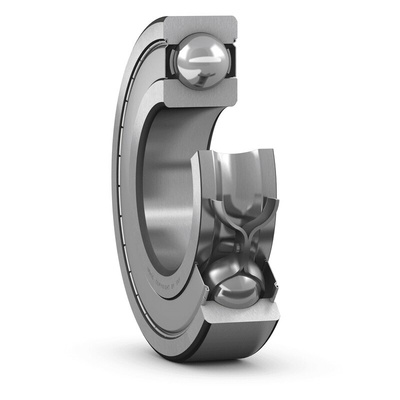

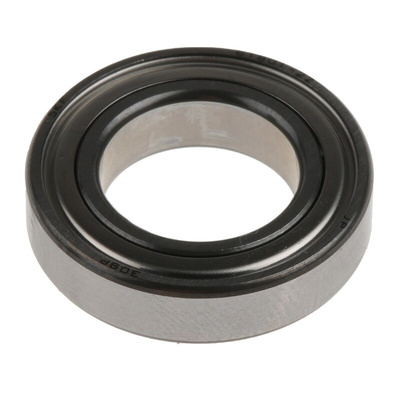

SKF 61801-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.D, 21mm O.D, Шарикоподшипник

SFK Deep-groove Ball Bearing, Plain Race Type, 12 mm ID - 61801-2Z

This shielded ball bearing from SFK is able to handle very high rotational speeds and both radial and axial loads in either direction. It needs little maintenance, thanks to its two metal dust shields, which help retain the bearing's lubrication and do away with the need for re-greasing. The shields also prevent moisture and dirt from affecting the bearing's efficiency. Its low-friction steel composition increases the performance of high-speed machinery, such as motors that operate at fast rotations per minute.

• Parallel bore type
• Plain race type
• Shielded end type
• Single row
• Cage made from steel
• Inside diameter of 12 mm
• Outside diameter of 21 mm
• Race width of 5 mm
• Static load rating of 670 N
• Dynamic load rating of 1.43 kN

Application Information

• Food and beverage industries
• Pharmaceutical manufacturing
• Paper and pulp mills
• Printing industry

What are the advantages of using a steel ball bearing?

A steel bearing such as this one from SKF has high resistance to corrosion, so it won't rust. As steel bearings can withstand higher temperatures, they can be used with equipment and machinery with high operating temperatures.
