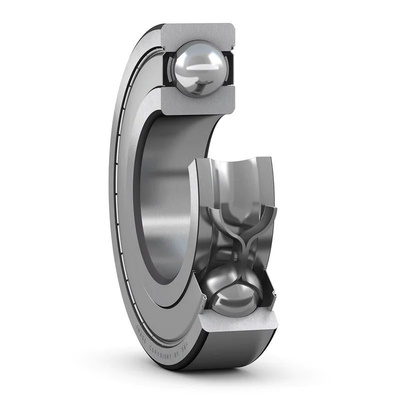

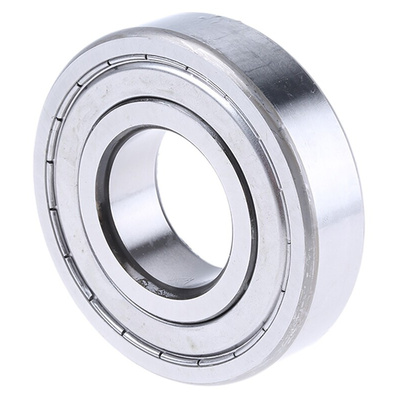

SKF 6308-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 40mm I.D, 90mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, Plain Race, 40mm ID, 90mm OD - 6308-2Z

Need a bearing that can handle axial and radial loads in both directions? Choose this single-row ball bearing from SKF. It has a 23mm-wide plain raceway with steel balls that move easily between the component's inner and outer rings for smooth rotation on a shaft or axle. It can reach 8500rpm without any modifications, so it's suitable for setups with high turning speeds. As indicated by its static load rating, this unit can withstand up to 24kN for protection against shocks or vibrations when it's stationary or slow-moving.

Features & Benefits

• Deep-groove bearing type for a higher load capacity
• Sheet-metal cage ensures stable movement and increased performance at higher turning speeds
• Pre-greased to lengthen service life, limit leakage and minimise maintenance

Applications

• Food and beverage production
• Medical industry
• Engines and pumps
• Printing

What's the dynamic load rating of this unit?

The basic dynamic load rating of this ball bearing is42.3kN, so you can rely on it to support substantial weights.

Is this bearing shielded?

Both sides of this unit have a metal non-contact shield that prevents dirt and contaminants from getting into the workings. This makes the bearing suitable for use in heavy-duty industrial settings.

6308-2Z Data Sheet

SKF Bearing Designations

Catalogue - Rolling Bearings

Catalogue - SKF Coatings

Datasheet - 6308-2Z

2851153_Datasheet_en
