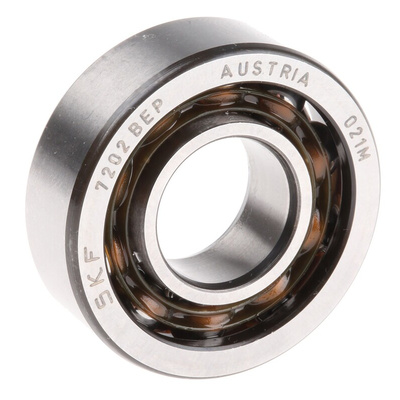

SKF 7202 BEP Single Row Angular Contact Ball Bearing- Open Type 15mm I.D, 35mm O.D, Шарикоподшипник

SKF Single-Row Angular-Contact Ball Bearing, 15mm ID, 35mm OD - 7202 BEP

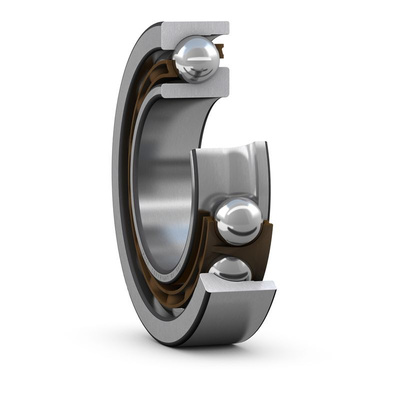

This ball bearing from SKF features one line of rolling elements on a plain race. It's very effective in high-speed applications because the compact geometry and smooth contact surface allow the balls to glide easily, without friction. It has a broad inner diameter of 15mm where multiple balls are held snugly in one line, increasing its loading power. The open end allows for easy mounting, so you can attach this ball bearing to another one for greater efficiency. Use this device to smoothly operate a high-velocity machine.

• Abrasion-resistant steel housing is sturdy and long-lasting
• Operational in temperatures up to +150°C for use in extreme conditions
• 24000r/min limiting speed for use in high-powered equipment with minimal friction
• 4.8kN static load capability provides grounded reinforcement in stationary machines

Applications

• Agricultural machinery
• Food and beverage processing
• Packaging facilities

What's the contact angle of this bearing?

This ball bearing has a contact angle of 40°, which means it can bear axial loads in one direction only. For effective use, bearings like this one should be mounted against a second, conventional bearing.
