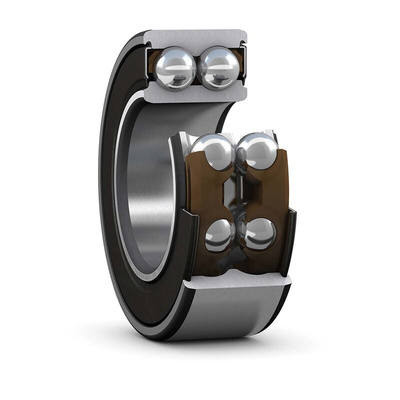

SKF 3204-A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 20mm I.D, 47mm O.D, Шарикоподшипник

SKF Plain Angular Contact Ball Bearing, 20 mm ID - 3204-A-2RS1TN9/MT33

This angular contact bearing from SKF is designed for precise shaft guidance that's low in friction and vibration. It's suitable to use in applications with high rotational speeds and can handle both radial and axial loads. The unit's optimised geometry means it can operate quietly and at a low temperature. And as its built-in seals are supplied pre-greased, they don't need maintenance or relubrication. The high load-carrying capacity isn't compromised by the bearing's compact size. This robust component offers a long service life.

• Parallel cage ball bearing type
• Made from steel
• Cage material of fibreglass reinforced nylon 66
• Dynamic load rating of 20 kN
• Static load rating of 12 kN
• Sealed end type
• Inner diameter of 20 mm
• Outer diameter of 47 mm
• Two rows
• Plain race type
• Race width of 20.6 mm

Application Information

• Chemicals and hydrocarbon processing
• Automotive industries
• Agriculture

What are integral seals on a bearing?

Bearings that are integrally sealed are already lubricated and designed without grease cavities or shaft seals. These can take up more space and impose a mechanical burden on the shaft. This durable seal keeps the bearing safe from the risk of contamination as a result of handling or a shared lubricant.

3204A-2RS1TN9/MT33

SKF Bearing Designations
