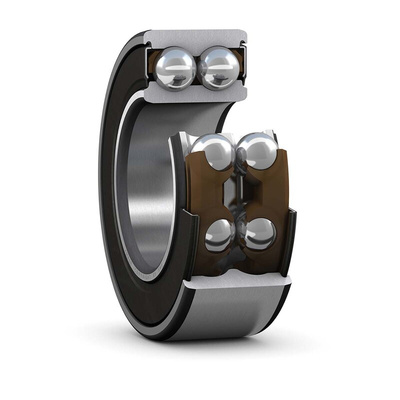

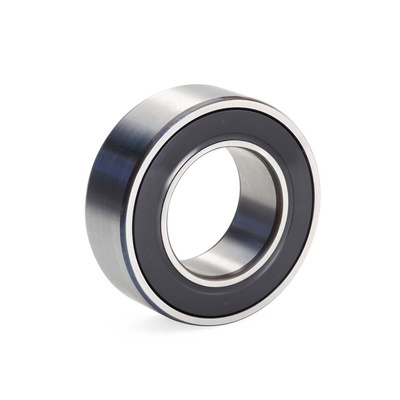

SKF 3205-A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 25mm I.D, 52mm O.D, Шарикоподшипник

SKF Plain Angular Contact Ball Bearing, 25 mm ID - 3205-A-2RS1TN9/MT33

When you want increased power density in a compact unit, turn to this angular contact bearing from the SKF Explorer range. This component is suited to high-speed applications – it delivers excellent accuracy levels and precise shaft guidance. It also produces very little vibration and offers smooth shaft running. Because it generates minimal heat, it keeps its lubrication. This not only makes it virtually maintenance-free but also enables it to function at high temperatures without any significant dimensional stability loss.

• Angular contact ball bearing type
• Parallel bore type
• Made from steel
• Cage material of fibreglass reinforced nylon 66
• Dynamic load rating of 21.6 kN
• Static load rating of 14.3 kN
• Sealed end type
• Inner diameter of 25 mm
• Outer diameter of 52 mm
• Two rows
• Plain race type
• Race width of 20.6 mm

Application Information

• Materials handling
• Wind energy generation
• Steel mills
• Machine tool industries

Is this ball bearing used for axial loads or radial loads?

This versatile ball bearing from SKF is suitable for both radial and axial load applications. It can withstand heavy axial forces in one direction, as well as heavy thrusts. This is due to the angle of contact that's made between its rolling elements and the inner and outer races.

3205A-2RS1TN9/MT33

SKF Bearing Designations
