SKF 3206-A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 30mm I.D, 62mm O.D, Шарикоподшипник

SKF Plain Angular Contact Ball Bearing, 30mm ID, 62mm OD - 3206-A-2RS1TN9/MT33

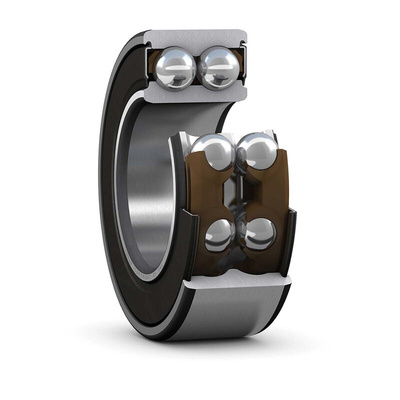

This double-row angular contact ball bearing from SKF features offset inner and outer raceways to provide robust support for combined radial and axial loads. The precision-designed crown cage provides reliable ball guidance to reduce friction and wear, ensuring a long product life. A fibreglass-reinforced nylon 66 cage material gives the bearing enhanced self-lubricating capacity and higher elasticity. This means it can operate at high speeds of up to 7500rpm (rotations per minute) with reduced noise, vibration and heat generation.

• Dynamic load rating of 30kN for substantial rotational power
• Parallel bore enables quick mounting onto a shaft
• Sealed end retains lubricant and prevents damage from dirt and moisture for a longer service life
• Lubricated for the life of the bearing so no maintenance is necessary

Applications

• Lifts
• Compressors
• Agricultural machinery
• Pumps and motors

What's this bearing made of?

The balls and raceways are made of an advanced kind of steel called NitroMax steel, which offers excellent corrosion resistance and has a high nitrogen content for superior durability. This material also features a low coefficient of thermal expansion, which means the balls can better maintain their preload during operation. This allows for minimal heat generation and longer lubricant life.

3206A-2RS1TN9/MT33
