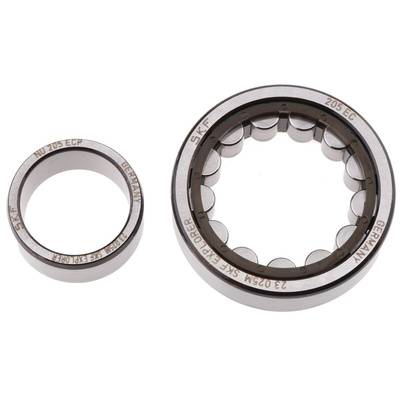

SKF NU 205 ECP 25mm I.D Cylindrical Roller Bearing, 52mm O.D, Роликовый подшипник

SKF Roller Bearing, Parallel Bore Bearing Type, 25mm ID, 52mm OD - NU 205 ECP

Support moving parts and protect your equipment from damage caused by friction with this roller bearing from SKF. It's a parallel-bore type, so handles high radial forces. You can rely on it with dynamic loads up to 28.6kN and static loads up to 27kN. It's an open-ended bearing with 13 precision-engineered cylindrical rollers that are held securely between two races to promote smooth running. The fibreglass-reinforced PA cage is stiff, strong and corrosion-resistant, so delivers long-term performance.

Features & Benefits

• 3.35kN fatigue load limit for durability
• Separable parts for easy installation and maintenance
• 15mm race, 25mm ID and 52mm OD to fit in more compact setups

Applications

• Automotive industry
• Conveyor systems
• Escalators and lifts

What's the maximum speed of this roller bearing?

This roller bearing has a maximum reference speed of 14,000rpm and a limiting speed of 16,000rpm, so you can rely on it for fast-moving applications.

Why would I use a cylindrical ball bearing instead of a spherical option?

Cylindrical roller bearings like this one are best used for heavy, fast-moving radial loads. Spherical bearings are a better choice if you need to prevent misalignment and keep your load stable.

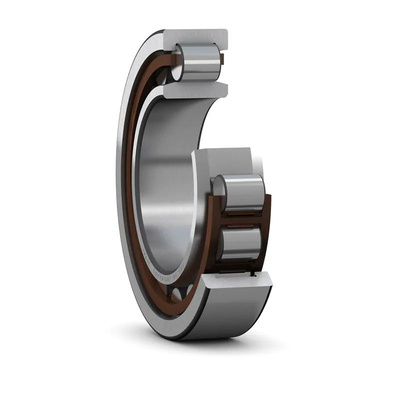

Single Row - Cylindrical

Typical applications for roller bearings include gearboxes and gear trains. Bearings supplied with instruction leaflet.

Dimension drawing data sheet

Datasheet - NU 205 ECP

Catalogue - Rolling Bearings
