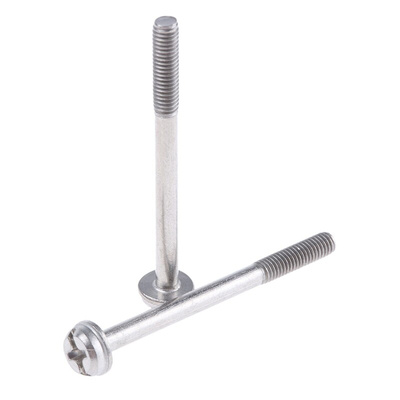

734363001 GDM 3011 RF-1 (VPE 100), Hirschmann Central Bolt for use with GDM Series Rectangular Connector

Belden Hirschmann Connector Accessory For Use With GDM and GM Connectors, A-Coded - 734363001 GDM 3011 RF-1 (VPE 100)

For secure mounting of pneumatic parts, choose this connector accessory from Belden's Hirschmann range. It's used to give solenoid valve connectors in the GDM series a firm hold on equipment and has an M3 x 35 combination slot that's compatible with a Phillips screwdriver. As this device is halogen-free, it won't release toxic chemicals in a fire.

Features & Benefits

• Supplied in packs of 50 to ensure you have plenty in supply
• Stainless steel body is resistant to steam, combustion gases and petroleum products
• 50 to 60Ncm fastening torque, so it's easy to tighten by hand

Applications

• Machine tooling
• Equipment manufacturing
• Magnetic valves
• Pressure transducers
• Temperature sensors

Can I use this unit in demanding conditions?

Yes, you can. A wide operating temperature range between -55°C and +125°C means it's a safe and reliable option for heavy-duty use.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

Product Information GDM 3011 RF-1
