2761826, Phoenix Contact, SUBCON Series D-SUB Bus Connector, Разъем

Field Bus Connectors

Similar to the standard rewireable connectors
Ideal for use in numerous bus systems

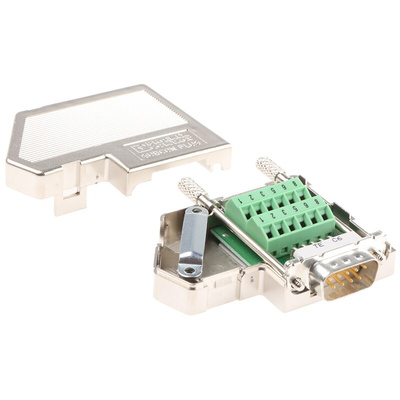

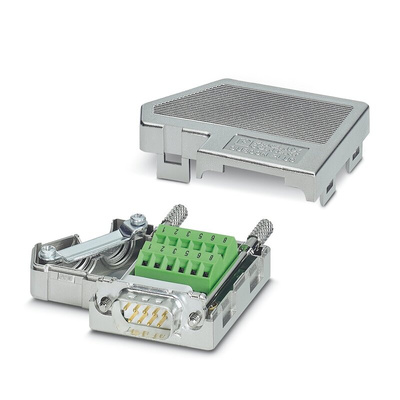

Double screw terminal blocks with different pin assignments. Only at the end of the bus does the 2nd block remain free for connecting resistors

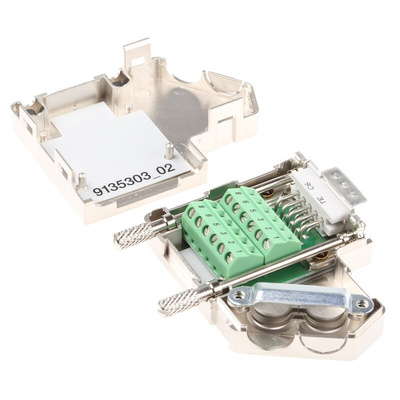

Cable entry 0° or 90°, left or right
EMC shielded backshells
Specifications as Standard connectors, see compatibility table for pin assignment

Supplied with

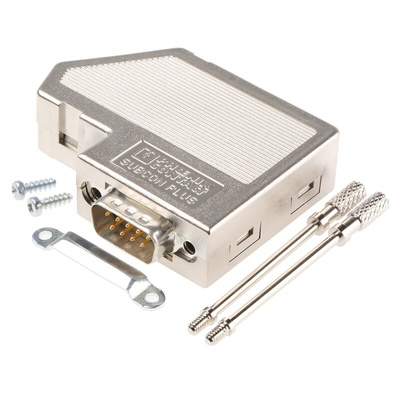

Knurled metal fixing screws.

Phoenix Contact D-Sub Connector Accessory, 9 Way, Male - SUBCON-PLUS M1 - 2761826

Use this D-sub connector from Phoenix Contact to secure your bus interface connections. With its conductive copper contacts, it forms effective electrical connections and supports efficient data transmission. To give you versatile mounting options, the unit's housing has two cable entry points, letting it work as both a straight and angled connector. Knurled fixing screws make assembly simple and ensure fast installation.
The plug's metal-plated ABS backshell shields against EMI, preventing disruption to your processes from electrical noise. As it has a mechanical lifespan of over 200 connection cycles, it provides long-lasting protection for your system. By using the jack screw pins included with the connector end, you can secure your cable against vibrations to eliminate disruption from jostling. The casing accepts conductor cross-sections between 0.14 and 1.5mm², so it's widely compatible with standard industrial wiring.

• Wide operating temperature range between -20°C and +75°C for use in demanding settings
• Low current rating of 100mA indicates energy efficiency
• IP20 rating indicates protection against solid objects over 12mm, including fingers, for safe handling
• ATEX-approved for use in potentially explosive atmospheres

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
