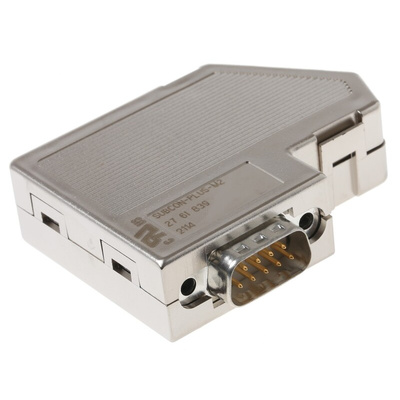

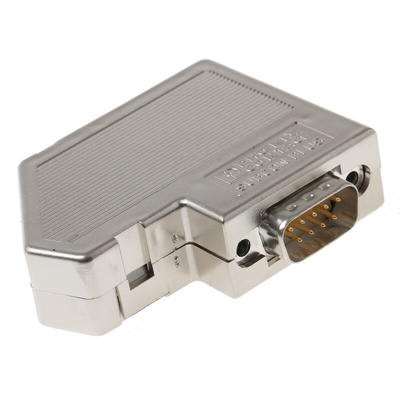

2761839, Phoenix Contact SUBCON-PLUS M2 9 Way 35 ° Panel Mount D-sub Connector Plug, Разъем

Phoenix Contact D-Sub Connector, 50V Voltage Rating, 60 (L) x 16 (W) x 44mm (D) - SUBCON-PLUS M2 - 2761839

Achieve reliable connections on circuit boards with this D-sub connector from Phoenix Contact. The 9-way coupling, with its 35° body orientation, establishes secure links for steady signal transfers between computers and peripherals.
The unit is part of the SUBCON-PLUS range, which also includes terminal blocks that can be added for two-wire arrangements to simplify assemblies. This makes building fieldbus systems with RS-485 interfaces easier. For versatility, this adapter is compatible with CAN, SUCONET, S-BUS and J-BUS setups. It can be installed in either the upper or lower shell for cable feeds from the left or right for flexible mounting options.

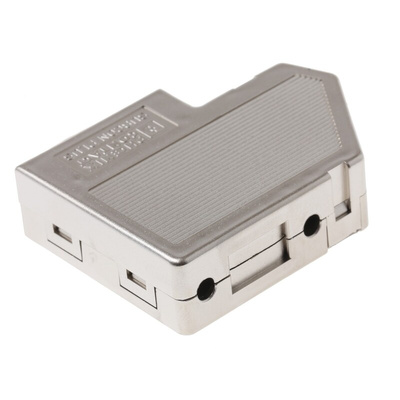

A tough metal-plated ABS housing protects internal pins and conductors and also offers electromagnetic compatibility to shield transmissions against interference. Compact dimensions of 60 (L) x 16 (W) x 44mm (D) mean it takes up minimal space on a PCB. You'll find this component in data and telecommunications networks and power supply units.

Features & Benefits

• Knurled screws for quick and easy installation
• Wide operating temperature range between -20°C and +75°C for use in harsh conditions
• cULus approval indicates the product meets safety standards in the United States and Canada
• RoHS certification indicates negligible amounts of dangerous materials are present

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets

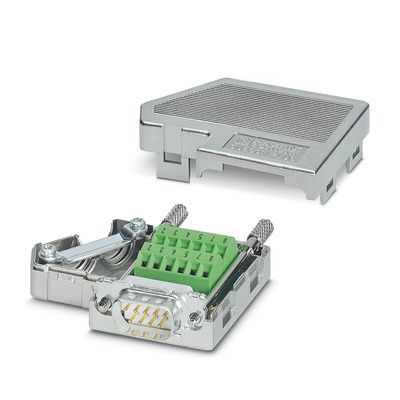

Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
