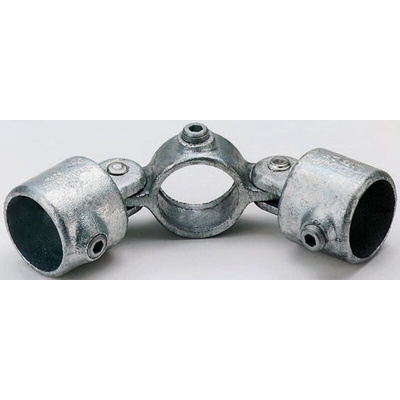

RS PRO Double Swivel Combination Connecting Component, Strut Profile Type 3, Round Tube Size Type 3

Double Swivel Combination

Allows the connection of two tubes, at 180° to each other, to a through tube between an angular range of 170°
Generally used as an intermediate fitting on stair case where flexibility is required in the gradient of the handrail

Note

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Standards

BS 1387

Staircase Fittings

The line drawing illustrates some typical applications of the fittings for the construction of staircase handrails.

For Tube Size Refs. 1, 2 and 3.

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Note

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).
