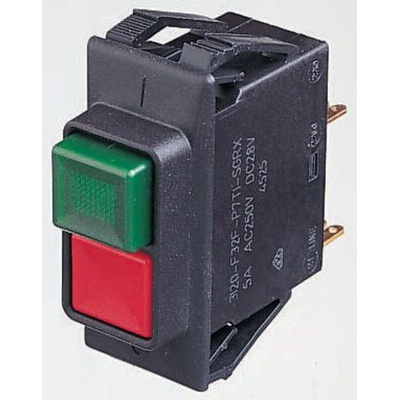

3120-F32F-H7T1-SGRX-5A, ETA Thermal Circuit Breaker - 3120 2 Pole Snap In, 5A Current Rating, Автоматический выключатель

CBE, 2 Pole Sensing, 2 Pole Switching, Twin Button, 3120 Series

IEC Classification S/TO (with modules, S/TM),This range of twin button on/off control type breaker offers significant cost and space saving over conventional master control gear products. With the addition of magnetic modules or zero volt release modules, these products can successfully replace motor control gear products for low rated motors.,Basic tripping times at 2xIN, 20-30 seconds.,Circuit protection designed for equipment, sub-systems and components.

Depth behind panel: 43mm

Approvals

UL, VDE, BV

Thermal Magnetic Convertible

All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).

3120-f Thermal Overcurrent Circuit Breaker Data Sheet

VDE 101063

BUREAU VERITAS 06793/B0

UL E67320

UL_ QVNU2.E67320
