Weidmuller FM 4 Series Mounting Foot for Use with TS35 Terminal Block

Top Hat DIN Rail Mount Bracket

DIN rails and brackets are made from cold rolled steel that is zinc coated and passivated. The coating thickness is a minimum of 8 microns. All DIN Rail meets current BS, DIN, AND CENELEC Standards,A steel, snap-on mounting bracket with M4, M5 or M6 tapped hole. Fits all TS35 ('top hat') mounting rails. Suitable for use with power supplies, relay bases, control modules etc.

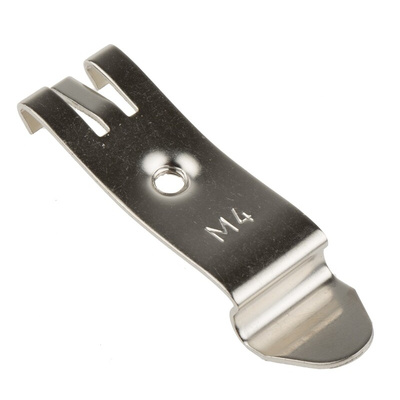

Weidmuller Mounting Clip, For Use With TS35 DIN Rails, Nickel-Plated Steel Material - FM4 Series - 0687900000

Easily mount components onto a DIN rail with this mounting clip from Weidmuller. You can use it to attach a wide variety of components, from power supplies to relay bases and control modules. It snaps in place on the rail, making it simple to install. You can use the M4-sized tapped hole to fix your equipment in place. For ease of removal, the bracket snaps off the rail when you need to modify your system.

Features & Benefits

• Nickel-plated steel construction for resistance to impact and corrosion
• Light weight of 4.708g to place minimal strain on your equipment

Applications

• Process control
• Factory automation
• Building installations

What's a DIN rail?

A DIN rail is a standardised metal rail found in equipment racks that's used for mounting components such as circuit breakers and other industrial control equipment. It provides mechanical support and can also be used for a chassis grounding connection, but is not intended to conduct electric current.

What DIN rails are compatible with this mounting clip?

For ease of assembly, you can use this mounting clip with top-hat DIN rails.
