RS PRO Timing Belt Pulley, Aluminium 10mm Belt Width x 5mm Pitch, 20 Tooth, Зубчатый шкив

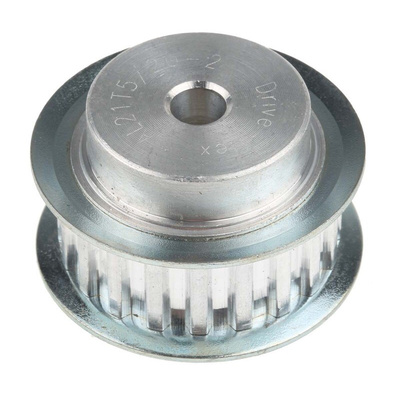

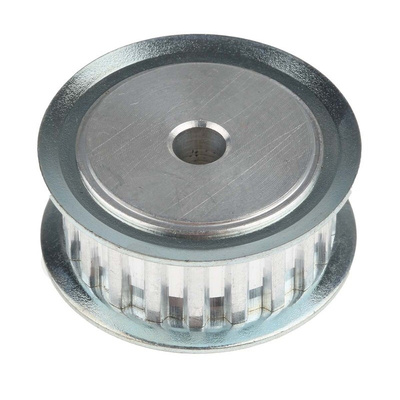

RS PRO Aluminium Timing Belt Pulley, 10 mm Belt Width x 5 mm Pitch, 20 Tooth, Maximum Bore Diameter 18 mm

RS PRO's timing belt pulleys are an effective way of controlling and maintaining power in a range of machinery found in environments such as packaging and manufacturing.
This belt pulley has an outer diameter of 31.83 mm and 20 teeth that fit with matching holes in a polyurethane belt. Timing pockets then engage with fasteners on the inside of a belt to enable the driving motion of a system such as an engine. The sturdy aluminium build of the pulley means you can maintain and control the speed easily, ensuring you benefit from high performance and helping to avoid any maintenance issues.

The size of a belt pulley required is decided by the width of your timing belt. All pulleys have flanges and standard pilot bores for ease of use and compatibility. This model's bores are 6 mm and the maximum bore diameter is 18 mm.

You'll find belt pulleys such as this used in manufacturing equipment as varied as printers and vehicles.

Features and Benefits

• Timing belt pulley
• 20 teeth
• Hub diameter of 24 mm
• Bore size of 6 mm
• Outside diameter of 31.83 mm
• Pitch of 5 mm
• Aluminium build
• Maximum bore diameter of 18 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
