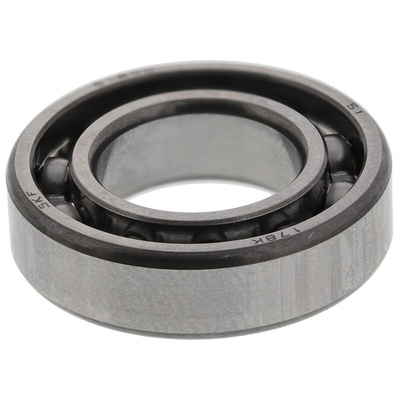

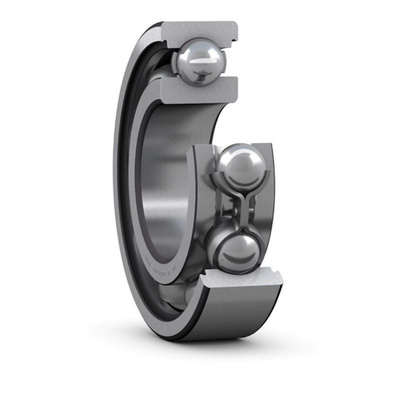

SKF 61800 Single Row Deep Groove Ball Bearing- Open Type 10mm I.D, 19mm O.D, Шарикоподшипник

SKF Deep-Groove Ball Bearing, 10mm ID, 19mm OD - 61800

Choose this deep-groove ball bearing from SKF to ensure the safe handling of radial and axial loads in your machinery. It’s made of corrosion-resistant steel to ensure longevity in harsh industrial environments. The unit's plain raceway is optimised for low noise and minimal vibration and supports high rotational speeds of up to 4,800r/min (rotations per minute). Thanks to a high dynamic load rating of 1.38kN (kilonewtons) and a static load rating of 585N (newtons), this is a reliable choice for industrial applications.

• Open-ended design allows lubricant to move freely through the workings and makes relubrication easy
• Compact dimensions of 5 (W) x 10 (ID) x 19mm (OD) makes it suitable for installation in areas with limited space
• Low maintenance thanks to its durable steel ball bearings and smooth raceway

Applications

• Electric motors
• Household appliances
• Industrial automation
• Factory machinery

How are different types of load defined?

Radial load is the maximum force moving in any direction that's applied perpendicular – or at a 90° angle to a machine's shaft. An axial load, on the other hand, is applied in the same direction at the shaft.
