SKF 6000 Single Row Deep Groove Ball Bearing- Open Type 10mm I.D, 26mm O.D, Шарикоподшипник

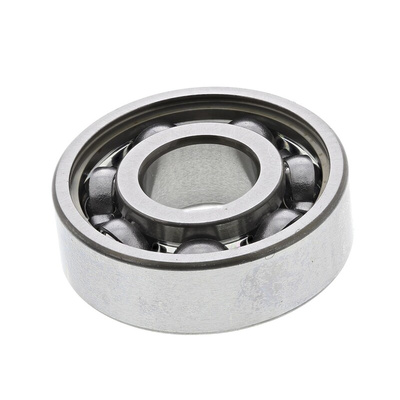

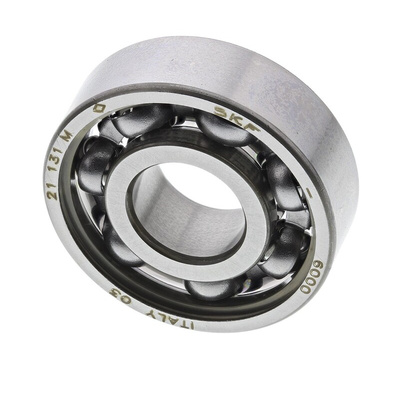

SKF Deep-Groove Ball Bearing, 10mm ID, 26mm OD - 6000

Protect your machinery from strain and friction wear with this deep-groove ball bearing from SKF. It's designed to carry axial and radial loads and it works by rotating with the part it's fitted to, such as a shaft. As it's an open-ended type, it comes unshielded with exposed balls. This makes visual inspection easy and lets you apply lubrication when needed. With a reference speed of 67,000r/min (rotations per minute) and a limiting speed of 40,000r/min, this unit is ideal for use with high-performance industrial tools, such as lathes and grinding machines.

• Low weight of 18.5g for easy handling and minal strain
• Static load rating of 2kN and dynamic load rating of 4.8kN for strength and reliability
• Corrosion-resistant steel material for a long service life and low maintenance

Applications

• Gearboxes
• Elevators and escalators
• Construction tools

What's the difference between an angular-contact ball bearing and a deep-groove ball bearing?

The difference between angular contact ball bearings and deep-groove ball bearings is that angular contact ball bearings have an asymmetrical cross-section. They're intended to support loads that are not perpendicular to the bearing axis, but rather at an angle to the perpendicular axis.

Datasheet

SKF Bearing Designations

Specification Sheet - 6000
