SKF 6001-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.D, 28mm O.D, Шарикоподшипник

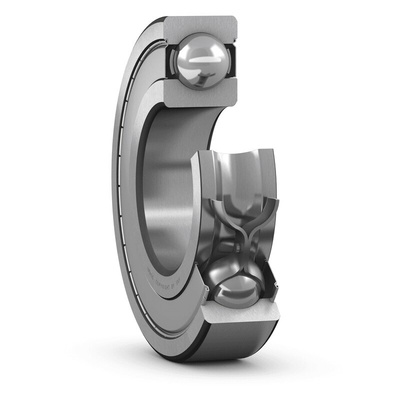

SKF Deep-groove Ball Bearing, Plain Race Type, 12 mm ID - 6001-2Z

This deep-groove ball bearing from SKF is designed for use with equipment where the inner bearing ring rotates, such as roller brushes. It can handle very high speeds as well as axial loads. The component features two metal dust shields that stop dirt and debris from entering the bearing. As this unit's load increases, the contact points between its rolling elements and raceways decrease. This reduces friction and allows the bearing to operate well even at extremely fast speeds.

• Parallel bore type
• Steel cage material
• Dynamic load rating of 5.4 kN
• Static load rating of 2.36 kN
• Inside diameter of 12 mm
• Outside diameter of 28 mm
• Steel material
• Single row
• Plain race type
• Race width of 8 mm

Application Information

• Food and beverage production
• Pharmaceutical manufacturing industry
• Medical industry

What's the difference between a ball bearing and a roller bearing?

The main difference between ball bearings and roller bearings is the amount of friction they produce. While the elements of a ball bearing are designed to reduce friction, roller bearings provide increased friction with heavier loads. This means that while they are slower they have a higher load-carrying capacity than a ball bearing of the same size.
